Question 1

Q1: What is the output power of AC500?

Accepted Answer

A: 3,000W Max. with 1*B300K

5,000W Max. with 2*B300K or more

4,500W Max. with 1*B300S

5,000W Max. with 2*B300S or more.

Question 2

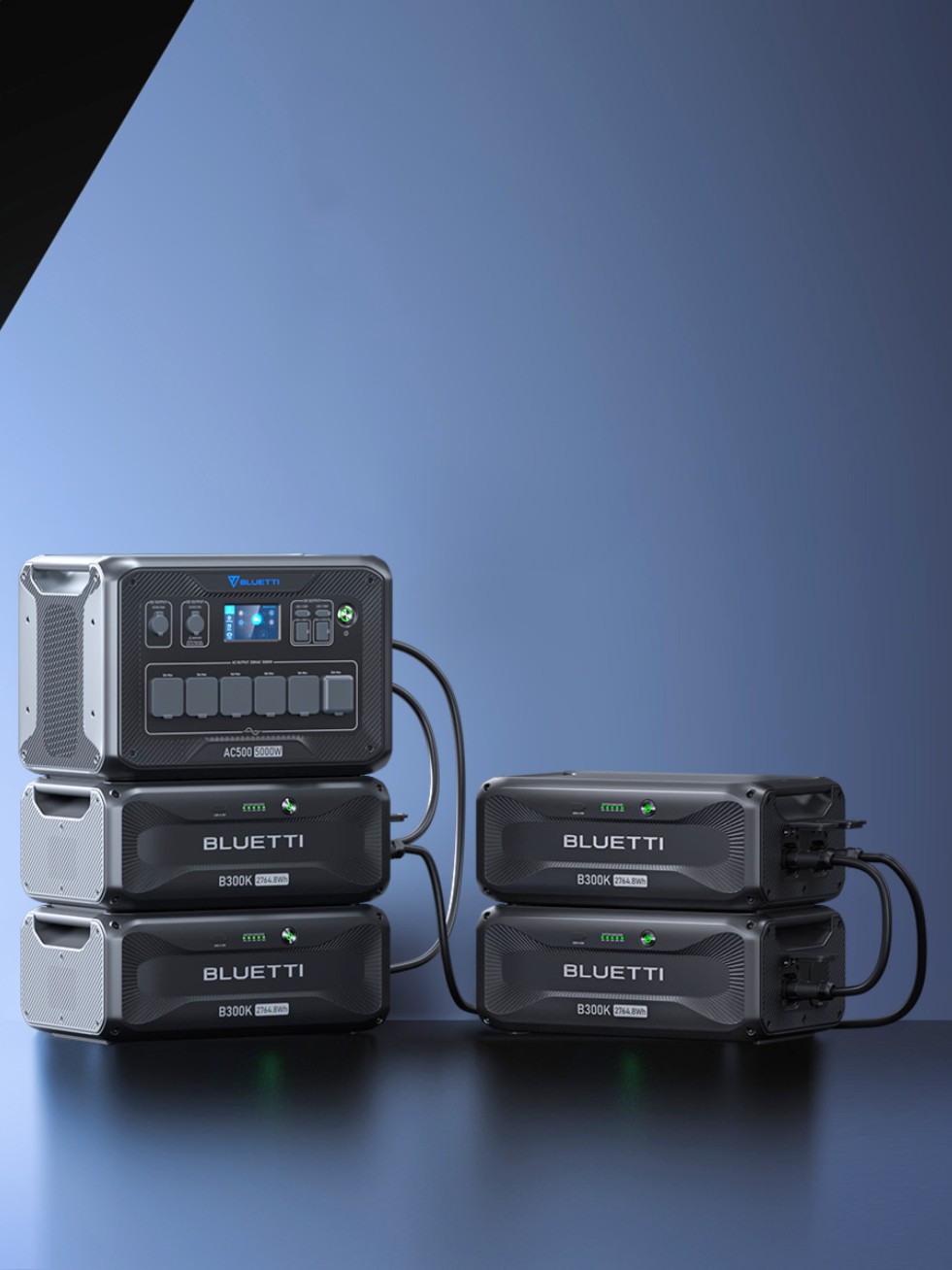

Q2: How many B300K packs can be connected to AC500?

Accepted Answer

A: The AC500 can be connected to 6 B300K.

Question 3

Q3: Can B300S and B300K be mixed?

Accepted Answer

A: Yes. 4 packs in total.

Question 4

Q4: Can l use AC500 alone?

Accepted Answer

A: No, it's 100% modular and needs to team with B300K/B300 to get its job done.

Question 5

Q5: Can l use other brands' batteries?

Accepted Answer

A: No, AC500 is compatible with B300K or B300S ONLY.

Question 6

Q6: What is the power consumption of AC500 when it's off/on?

Accepted Answer

A:

1. 11W when AC500 is on, DC and AC are off;

2. 30W when AC and DC are on.

Question 7

Q7: Do l need an extra cable to connect B300K and AC500?

Accepted Answer

A: Yes, P150D to P090D is required, you may order it separately in BLUETTI
Store.

Question 8

Q8: How to connect AC500 to the main panel?

Accepted Answer

A: Low Voltage Area: Match the transfer switch and smart home panel to the main
panel.

High Voltage Area: Match the transfer switch to the main power box.

Question 9

Q9: What is the switching time of the UPS?

Accepted Answer

A: 20ms.

Question 10

Q10: Can l use third-party solar panels to charge AC500?

Accepted Answer

A: Yes, the solar panels must meet the following conditions:

1) Total voltage:12-150V

2) Total power: 3000W max.

3) With MC4 connectors

Question 11

Q11: Can l use a rooftop solar panel to charge AC500?

Accepted Answer

A: Yes, but please note that your solar roof must meet:

1. No micro-inverter

2. Open circuit voltage 12-150V

3. With MC4 connectors

Note: When OCV exceeds 150V, you may use BLUETTI D300S* to step down the voltage
to achieve solar charging.

Question 12

Q12: Does AC500 support charging and discharging at the same time?

Accepted Answer

A: Yes.

Question 13

Q13: How long will AC500 run my device?

Accepted Answer

A: Running time = battery capacity x DoD x η ÷ device rated power

DoD: Depth of Discharge, η: local inverter efficiency. For AC500, both DoD and η
are 90%. If you run a 1,000W microwave oven with a AC500 + B300K combo, the
running time will be 2,764.8Wh × 90% × 90% ÷ 1,000W ≈ 2.2 hours

Note:

1) This formula doesn't apply to inductive loads with compressors, such as
refrigerators, air conditioners, etc.

2) The above data is for reference ONLY.

Question 14

Q14: ls AC500 waterproof?

Accepted Answer

A: No, please keep it in a dry place.

Question 15

Q15: Can l use the fusion box in high-voltage areas?

Accepted Answer

A: No.

Question 16

Q16: Why does a warning come up when using a diesel heating pump with the cigarette lighter port?

Accepted Answer

A: The pump may require more initial power to start. Use a compatible adapter to
start and run the pump with our AC outlets.

Capacity	5,529.6Wh	5,529.6Wh
AC Outlets	3 x 240V/10A Outlets 2 x 240V/15A 1 x 240V/32A 5,000W In Total	6×220V-240V/13A, 3000W In Total
AC Input	5000W Max.	3000W Max.
Solar Input	3,000W Max., VOC 12-150VDC, 15A	2400W Max.,12-150VDC,12A
Type	LiFePO₄	LiFePO₄
Life Cycles	4,000+ Cycles	4,000+ Cycles
Dimensions (L x W x D)	523235.80cm(AC500)/52.532.720.9cm(B300K)	523235.80cm(AC300)/52.532.720.9cm(B300K)
Weight	30 kg(AC500)/29.5kg(B300K)	21.6 kg(AC300)/29.5kg(B300K)

AC500+B300K
