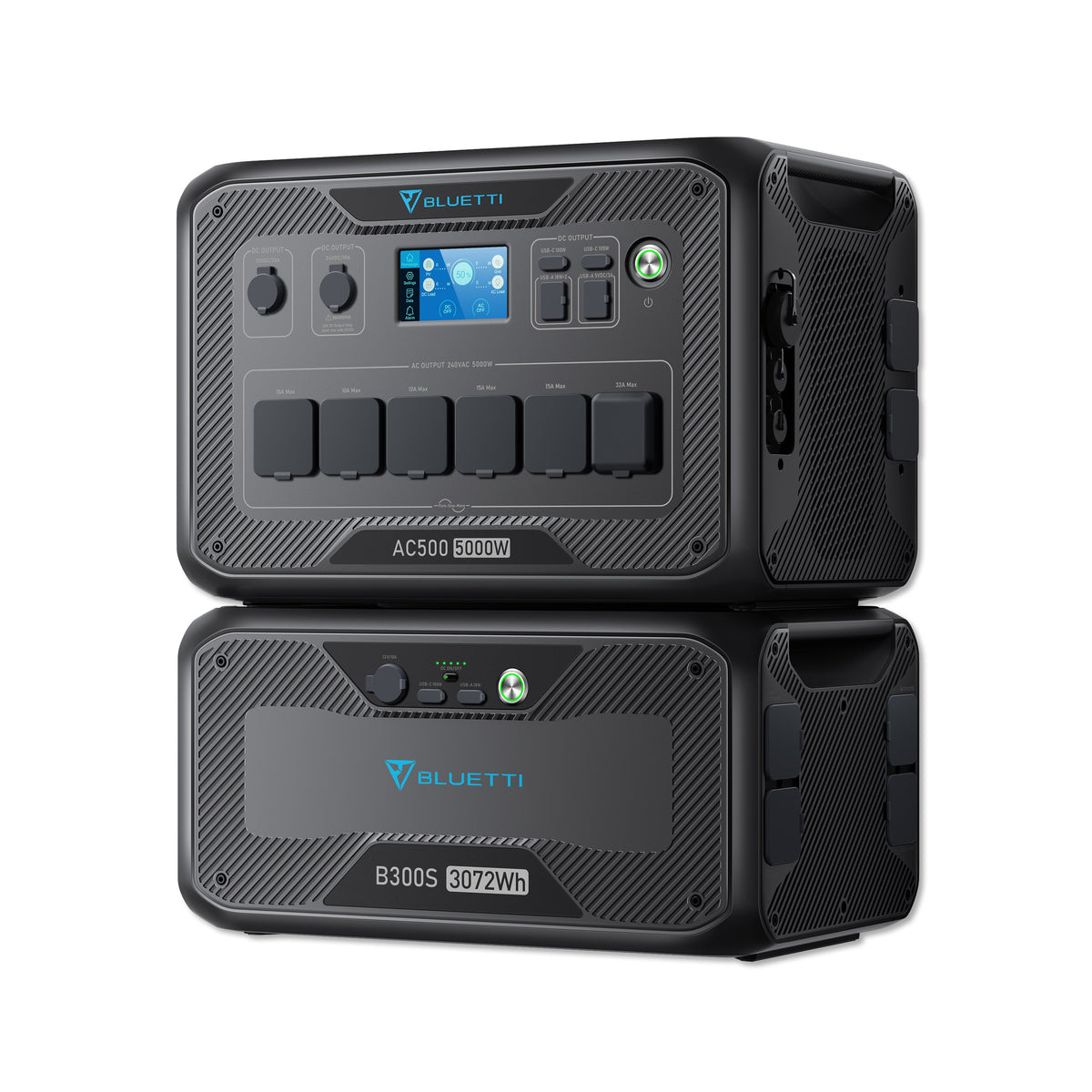

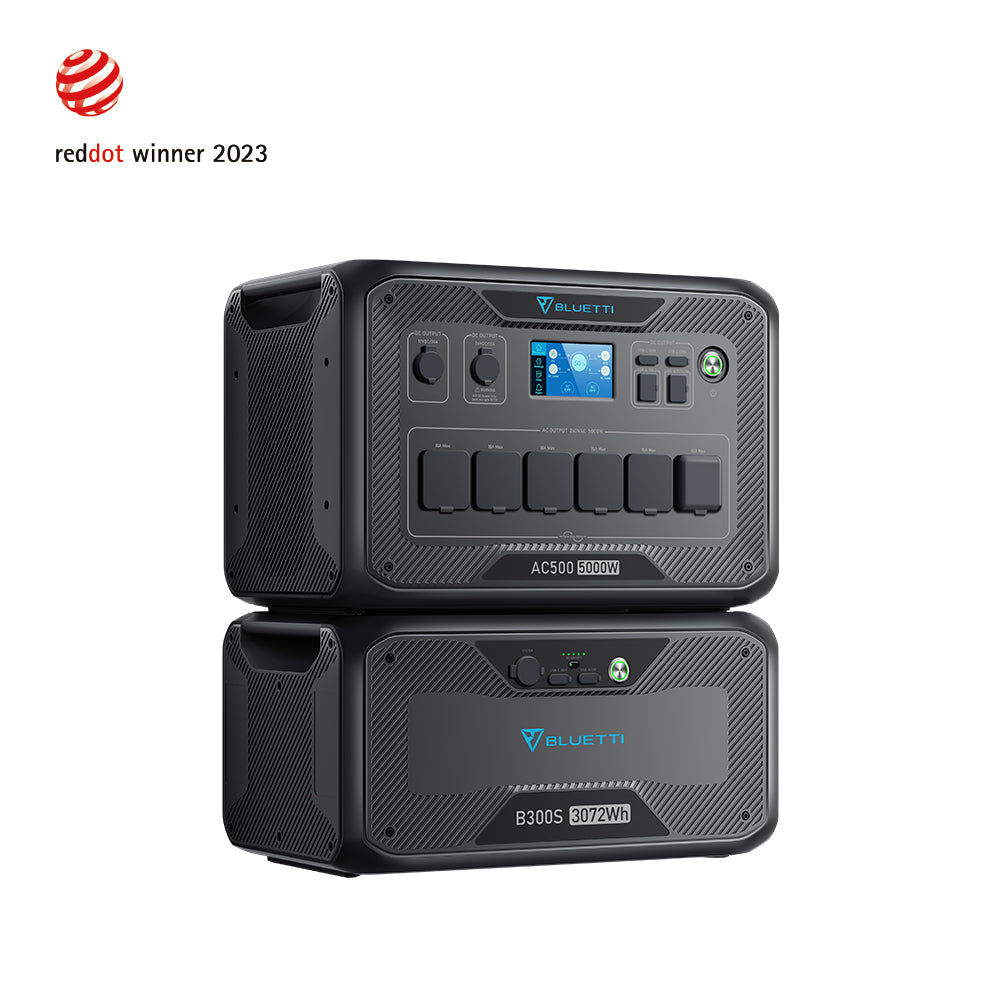

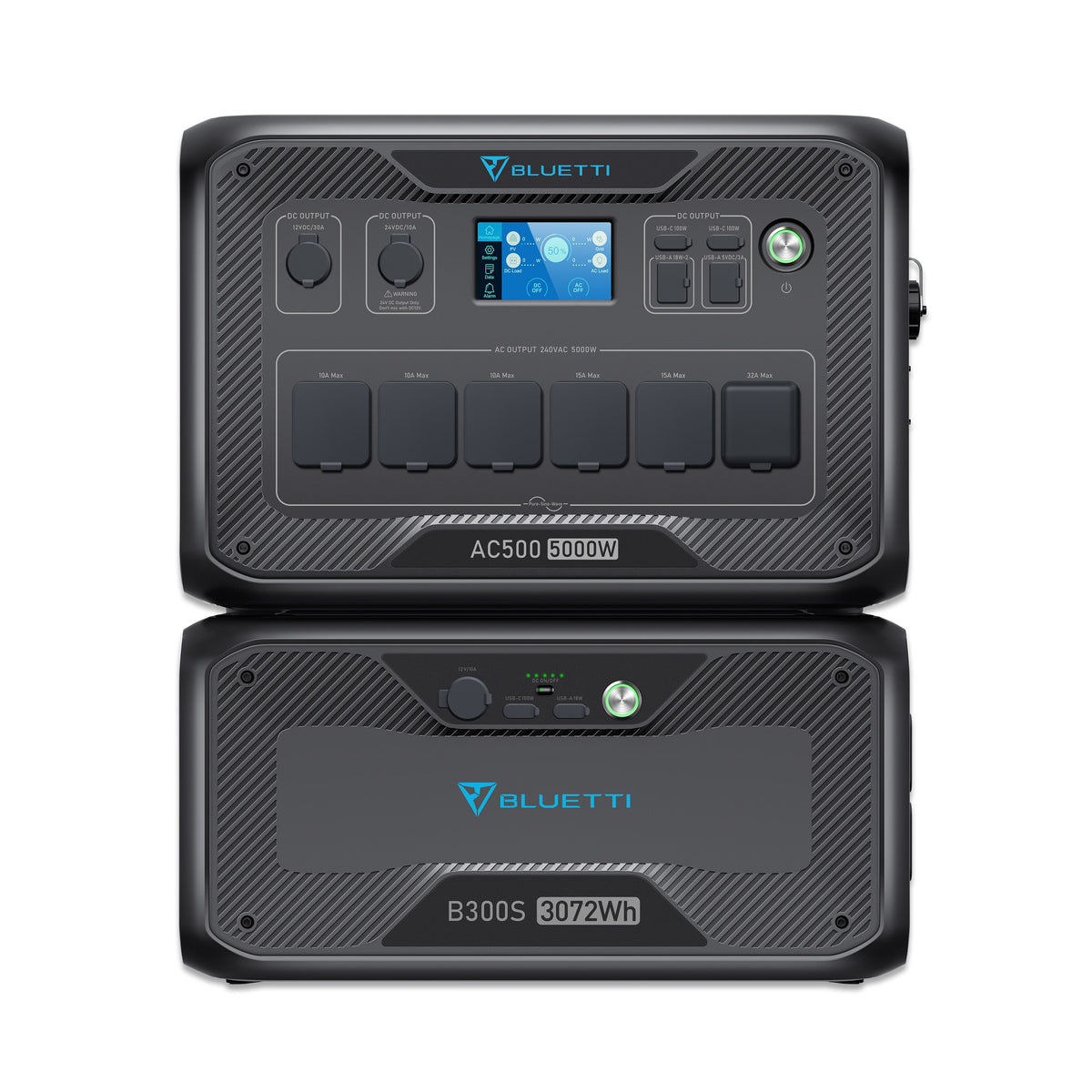

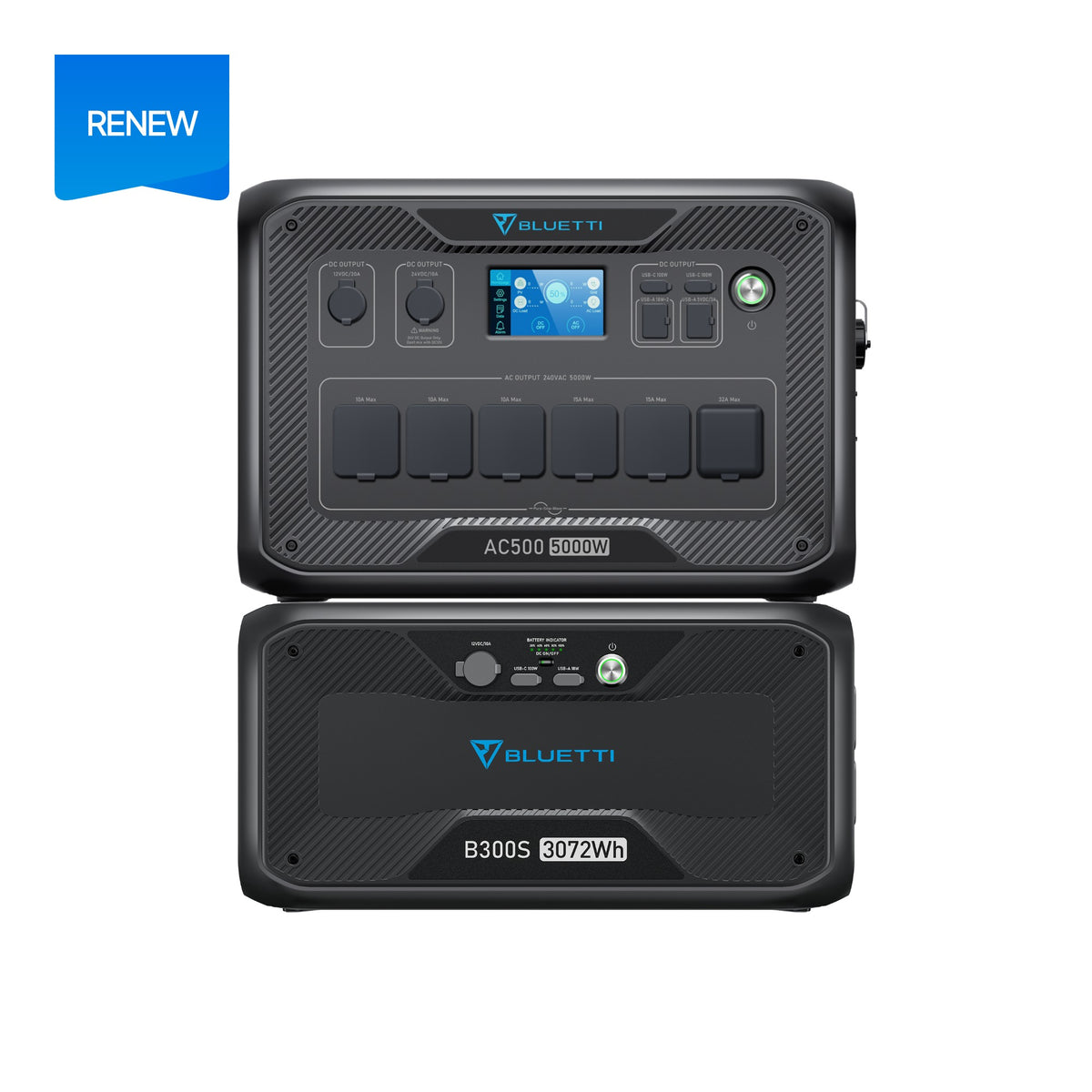

BLUETTI AC500 + B300S | Solar Generator Kits( Renew )
Estimated shipping time of B300S: Early August.
All unshipped orders will be eligible for a
compensatory reward of 5000 BLUETTI BUCKS that can be redeemed for a A$50 discount code.
- 5,000W Rated Power (10,000W Surge).
- Expandable Capacity From 3,072Wh to 18,432Wh.
- LiFePO4 Battery With 3,500+ Life Cycles to 80%.
- Smart APP Control (WiFi & Bluetooth Connection).
- 6 Ways to Recharge (AC/Solar/Car/Generator/Lead-acid battery/Dual charging).
- 16 Versatile Outlets for 99% Devices.
- 24/7 UPS Home Backup.
- 4-Year Warranty.
-
Why Renew Products?
Just Like-new
Our renew products may have been out of the box but have yet to be used. They will be packaged in a new box before being delivered to you.
Expertly Assessed
All renew products undergo a rigorous refurbishment process, including pre-sale testing and assessment to ensure the same performance and quality as the brand-new offerings, but with significant savings of up to A$1,060.
Full Warranty
Rest assured, every certified renewed unit is backed with a comprehensive warranty coverage like the brand-new one, allowing great satisfaction and peace of mind.
Free Shipping
We proudly provide free shipping for all renewed items within Australia. Plus, our dedicated after-sales support team is at your service. Questions? Don't hesitate to contact us at sale-au@bluettipower.com.
Tech Specs
BUNDLE:
Free
Local Shipping
4-year Hassle Free
Warranty
Lifetime Customer
Support
Subscription Successful!
We will email you when this product becomes available.
Already Subscribed!
You have already subscribed to this product. We will email you when this product becomes available.
Modular Solar Power System for All Needs
5000W Pure Sine Wave Inverter
Charge in Any Way You Like
Power Option for Personalization
either in daily use or power outages!
Other Top Rated Products
Specifications
User Manual
BLUETTI AC500 + B300S | Solar Generator Kits( Renew ) User Manual
FAQS
-
Q: How fast can I charge the AC500 with a standard AC charging cable?
A:With this cable, you can charge the AC500 at a maximum input of 2400W.
-
Q1: How can I get a 5000W AC input for the AC500?
A:Connect 2 or more B300S units to the AC500, integrate them to the main panel of your home and you're ready to charge the AC500 at the maximum 5000W AC input. Note: The maximum AC input of AC500+B300S is 4500W.
-
Q2: How much power can I draw from the 32A AC outlet?
A:5000W Max. This outlet is for power-hungry appliances that require higher currents. Note: A M28 Bayonet 3-Pin Male Connector is required. Learn more. The CEE 32A outlet delivers a maximum current of 32A.
-
Q3: What is the output power of AC500?
A:
4,500W Max. with 1*B300S
5,000W Max. with 2*B300S or more
3,000W Max. with 1*B300
5,000W Max. with 2*B300 or more. -
Q4: How many B300 packs can be connected to AC500?
A:4 -
Q5: Can I use AC500 alone?
A:No, it's 100% modular and needs to team with B300S/B300 to get its job done.
-
Q6: What is the max charging power of AC500?
A:
3,000W Max. with 1*B300.
5,000W Max. with 2*B300 or more.
4,500W Max. with 1*B300S (Solar + AC).
8,000W Max. with 2*B300S or more (Solar + AC). -
Q7: Can I use other brands' batteries?
A: No, AC500 is compatible with B300S or B300 ONLY. -
Q8: What is the power consumption of AC500 when it's off/on?
A: 1. 11W when AC500 is on, AC and DC are off; 2. 30W when AC and DC are on. -
Q9: Do I need an extra cable to connect B300 and AC500?
A:Yes, P150D to P090D is required, you may order it separately in BLUETTI Store. -
Q10: What is the difference between B300S and B300?
A: 1) Current capacity: 130A for B300S while 75A for B300.
2) ONLY B300S features the automatic heating function.
3) Solar input: 500W for B300S while 200W for B300. -
Q11: How does the heating function work?
A: When the temperature is below 0℃, the battery will be automatically heated once AC or PV charging is activated (input power>400W). -
Q12: How to connect AC500 to the main panel?
A: Low Voltage Area: Match the transfer switch and smart home panel to the main panel.
High Voltage Area: Match the transfer switch to the main panel. -
Q13: What is the switching time of the UPS?
A: 20ms. -
Q14: Can I use third party solar panels to charge AC500?
A: Yes, the solar panels must meet the following conditions:
1) Total voltage: 12 - 150V
2) Total power: 3000W max.
3) With MC4 connectors. -
Q15: Can I use rooftop solar panel to charge AC500?
A: Yes, but please note that your solar roof must meet:
1. No micro-inverter
2. Open circuit voltage: 12-150V
3. With MC4 connectors
Note: When OCV exceeds 150V, you may use BLUETTI D300S* to step down the voltage to achieve solar charging.* D300S Sold separately. -
Q16: Does AC500 support charging and discharging at the same time?
A: Yes. -
Q17 : How long will AC500 run my device?
A: Running time = battery capacity x DoD x η ÷ device rated power
DoD: Depth of Discharge, η: local inverter efficiency. For AC500, both DoD and η are 90%.
If you run a 1,000W microwave oven with a AC500 + B300S combo, the running time will be 3,072Wh × 90% × 90% ÷ 1,000W ≈ 2.5 hours
Note:
1) This formula doesn't apply to inductive loads with compressors, such as refrigerators, air conditioners, etc.
2) The above data is for reference ONLY. -
Q18 : Is AC500 waterproof?
No, please keep it in a dry place. -
Q19 : Can I use the fusion box in high voltage areas?
No. -
Q20: How many B300S packs can be connected to AC500?
A:6
-
Q21: Can B300S and B300 be mixed?
A:Yes. 4 packs in total.
How-to
A useful guide to making the most of it all.
