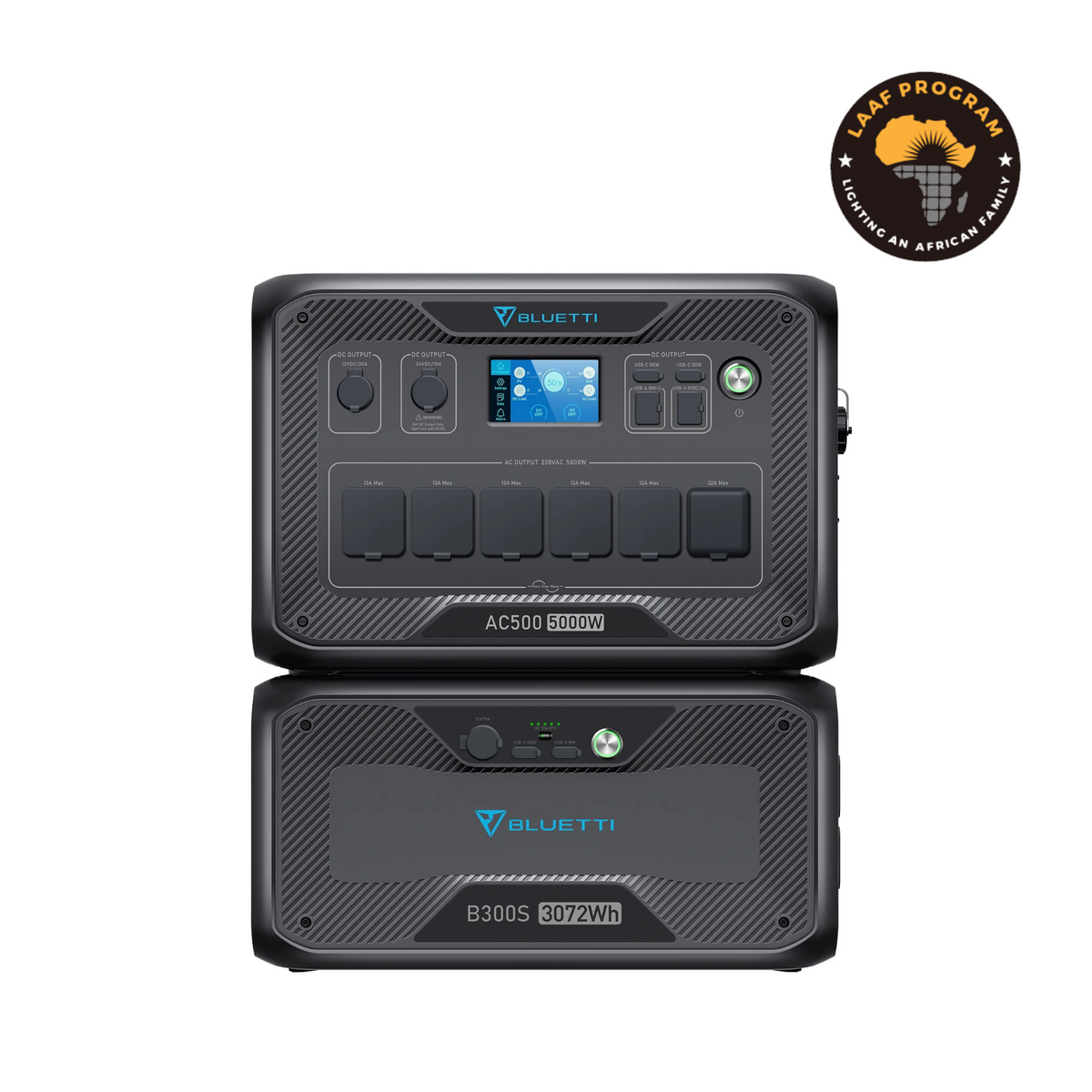

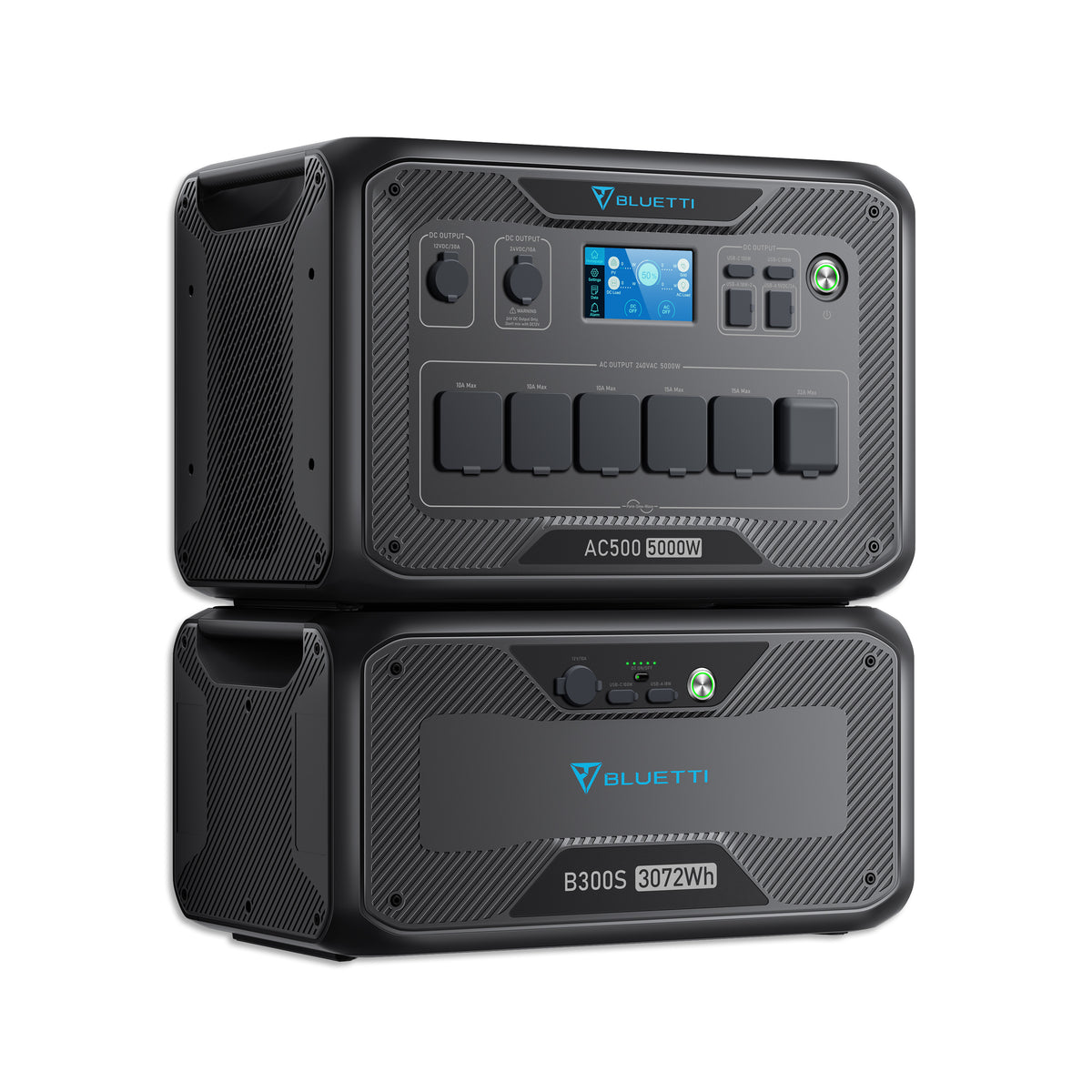

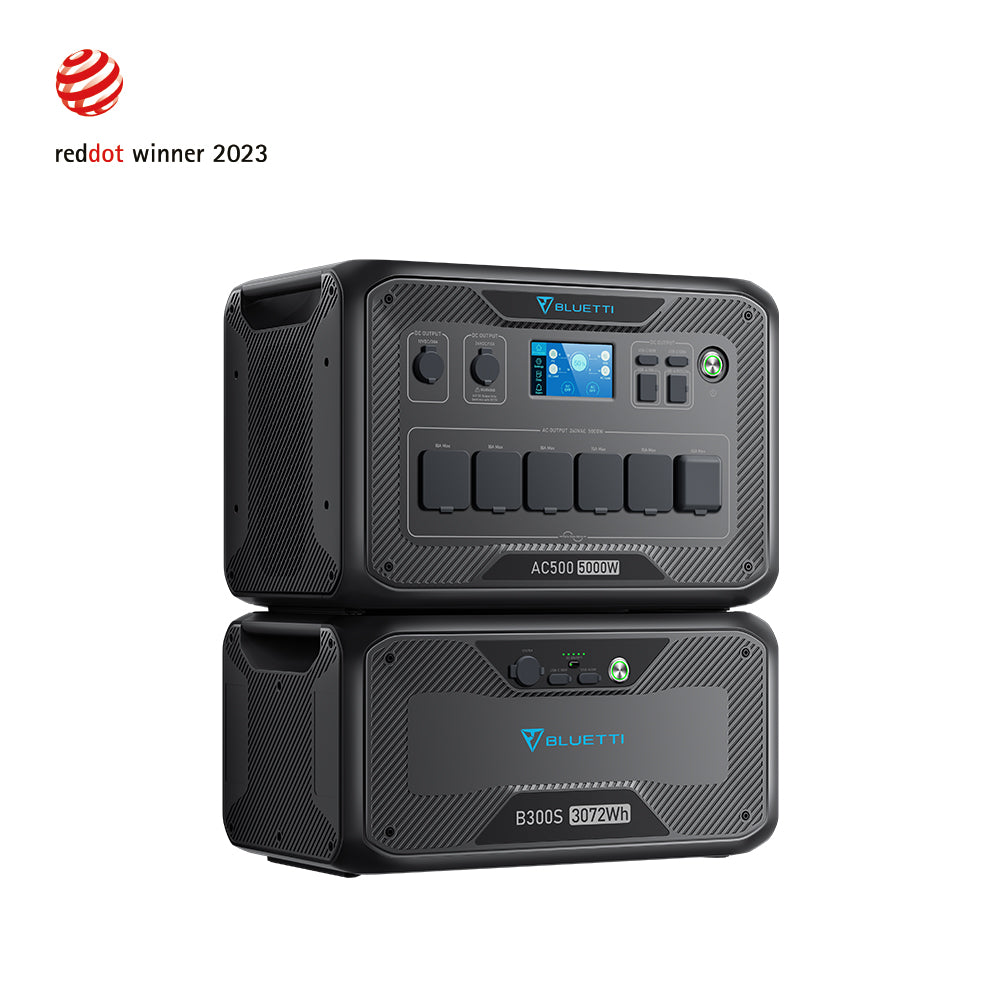

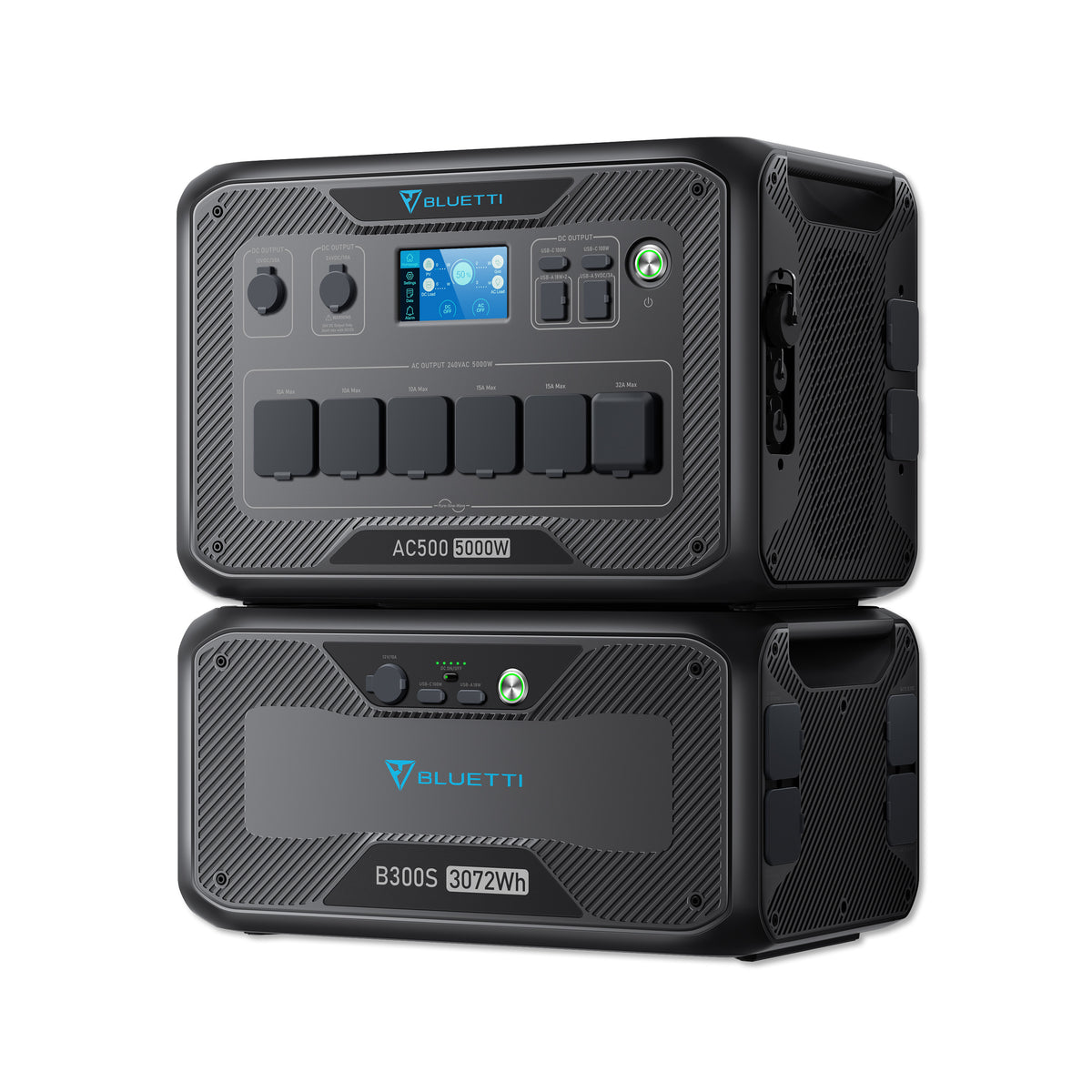

BLUETTI AC500 + B300S | Solar Generator Kits

A$7,898.00

A$7,898.00 ~~A$9,398.00~~ - A$1,500.00

⏰Power Week Sale Ends in

Days

Hours

Minutes

Seconds

4899 reward BLUETTI BUCKS

5,000W Rated Power (10,000W Surge).
Expandable Capacity From 3,072Wh to 18,432Wh.
LiFePO4 Battery With 3,500+ Life Cycles to 80%.
Smart APP Control (WiFi & Bluetooth Connection).
6 Ways to Recharge (AC/Solar/Car/Generator/Lead-acid battery/Dual charging).
16 Versatile Outlets for 99% Devices.
24/7 UPS Home Backup.
4-Year Warranty.
* Please note the different kits with B300 / B300S batteries.
A P150D to P090D cable is required if connecting to B300.
Learn More About AC500+B300S >>

Tech Specs

BUNDLE:

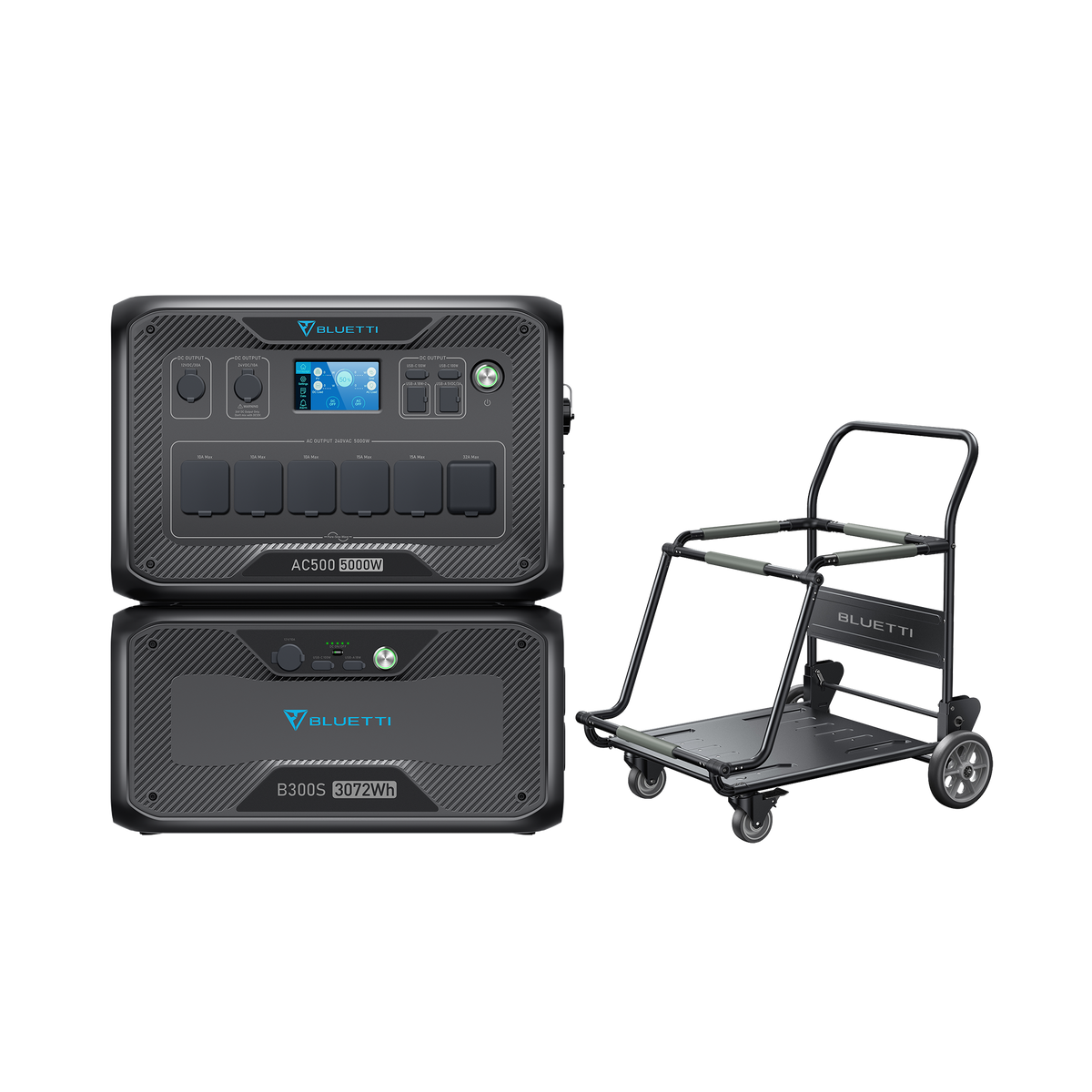

AC500+B300S | 5000W, 3072Wh Power Kit
A$4,899.00 ~~A$6,299.00~~

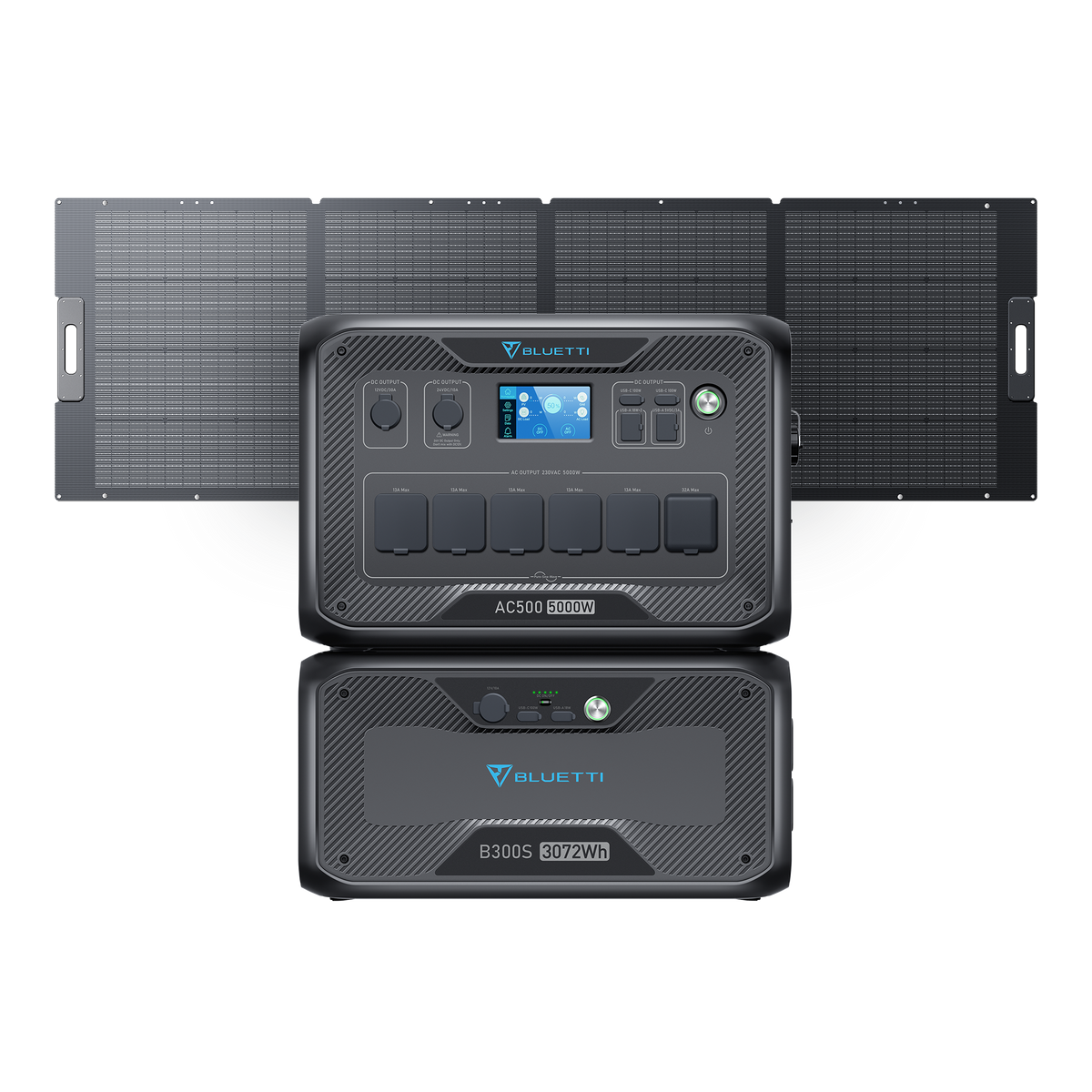

AC500+B300S+1*PV350| 5000W, 3072Wh, 350W Solar Kit
A$5,499.00 ~~A$7,698.00~~

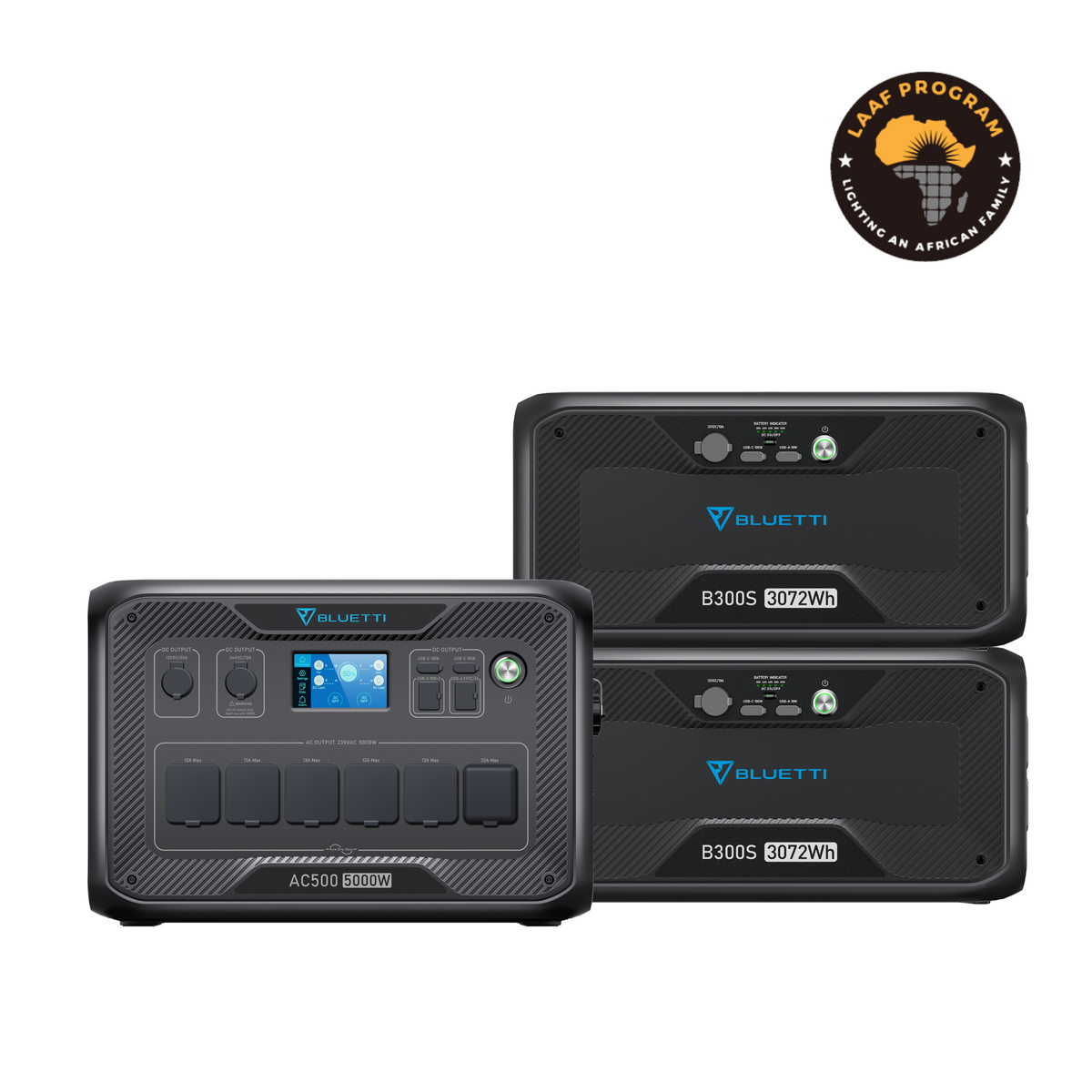

AC500+2*B300S | 5000W, 6144Wh Power Kit
A$7,898.00 ~~A$9,398.00~~

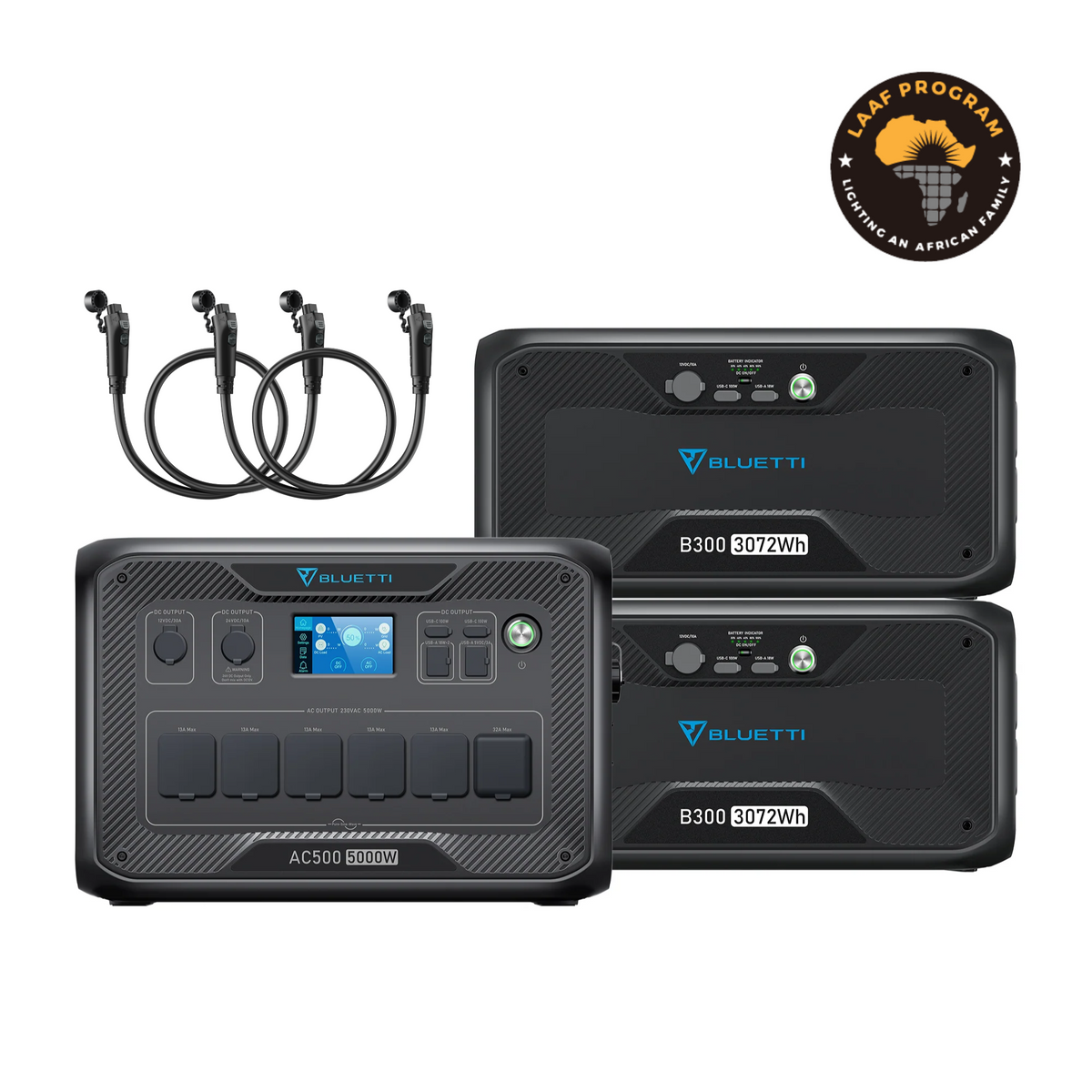

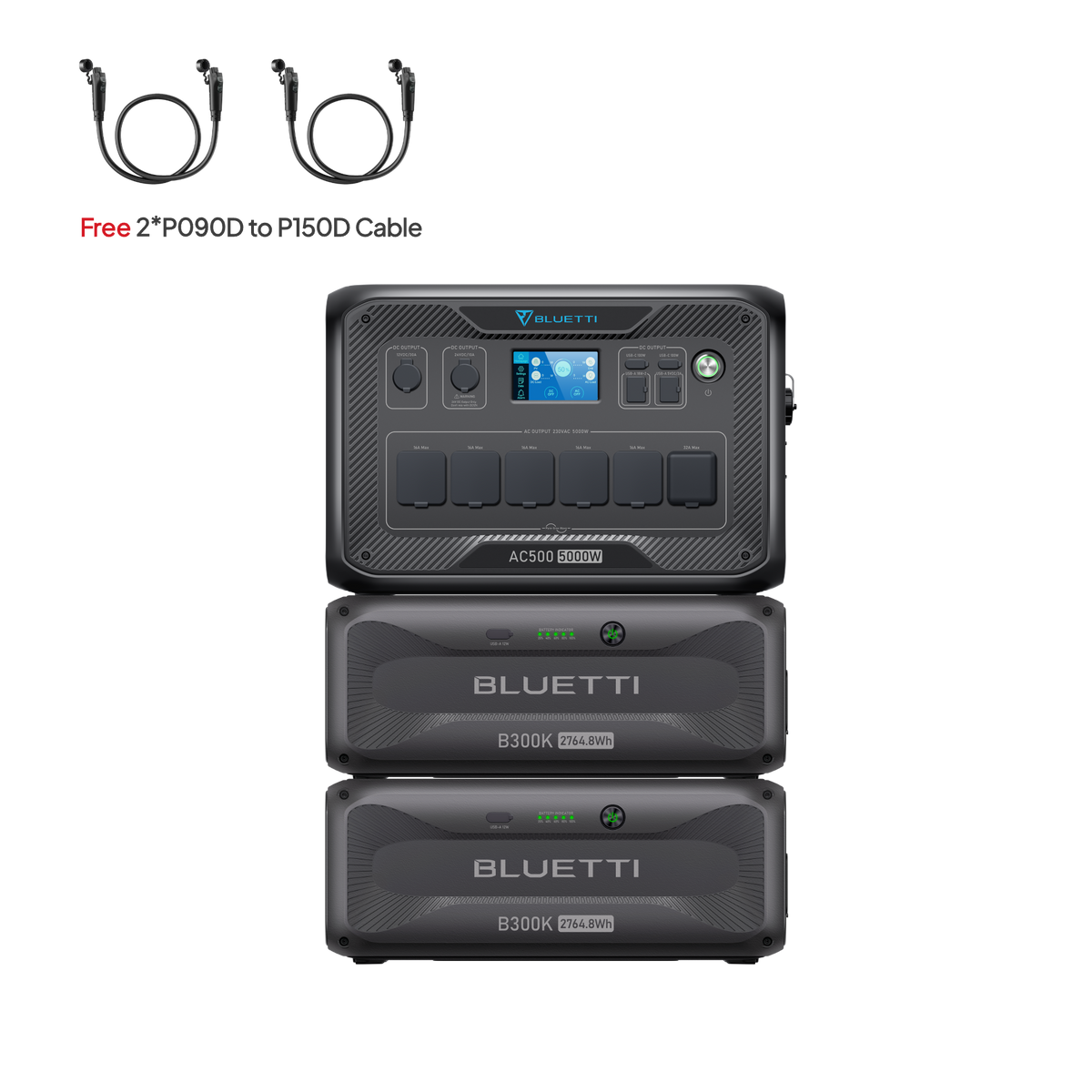

AC500+2*B300K+ 2*P090D-P150D Cable | 5000W, 5529.6Wh Power Kit
A$6,699.00 ~~A$8,997.00~~

Variants:

Quantity :

30 Days Price Match Guarantee

BLUETTI guarantees that we will refund you the difference if you find a lower price from us within 30 days of your purchase.

Free
Local Shipping

4-year Hassle Free
Warranty

Lifetime Customer
Support

Make a difference today! Check out LAAF's latest updates.

Join BLUETTI's mission with LAAF to brighten homes and support education. For every AC300/AC500 unit purchased, we donate a solar power system to families, ensuring well-lit living spaces and equal learning opportunities for children.

Modular Solar Power System for All Needs

AC500 & B300S, the expandable power system, will definitely shift the way you harness the solar energy. It's designed to help you go through power outages, stay connected to unlimited energy wherever you are heading.

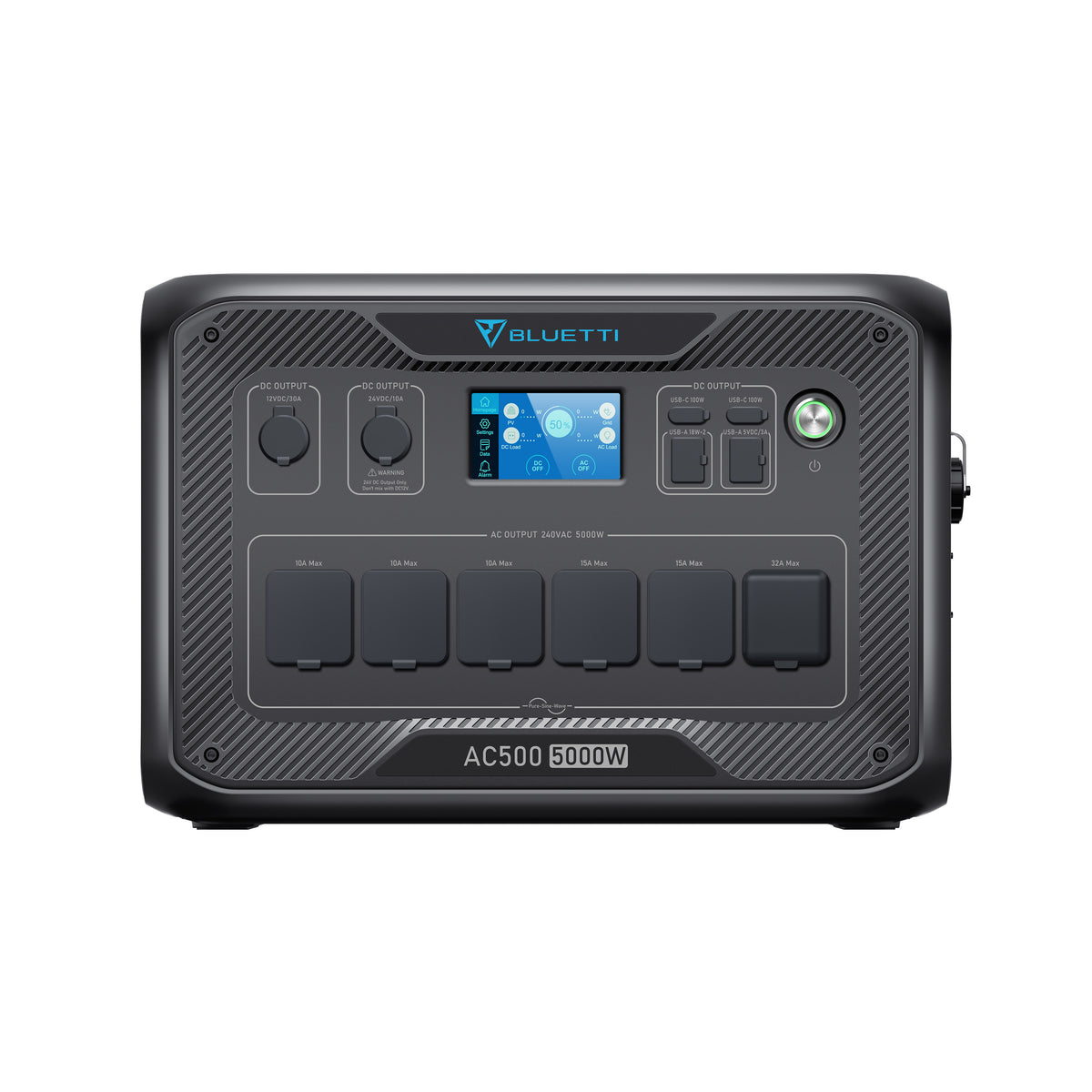

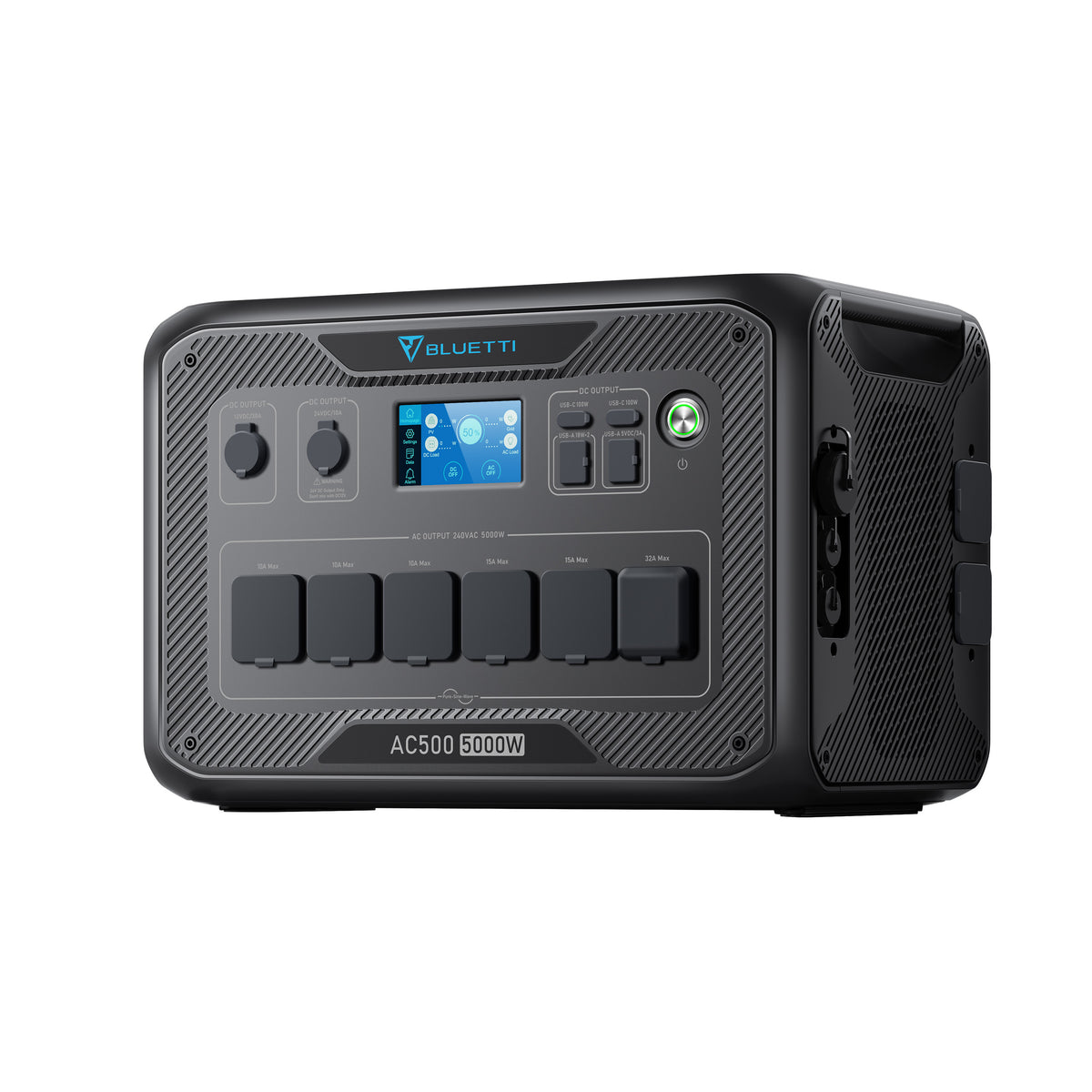

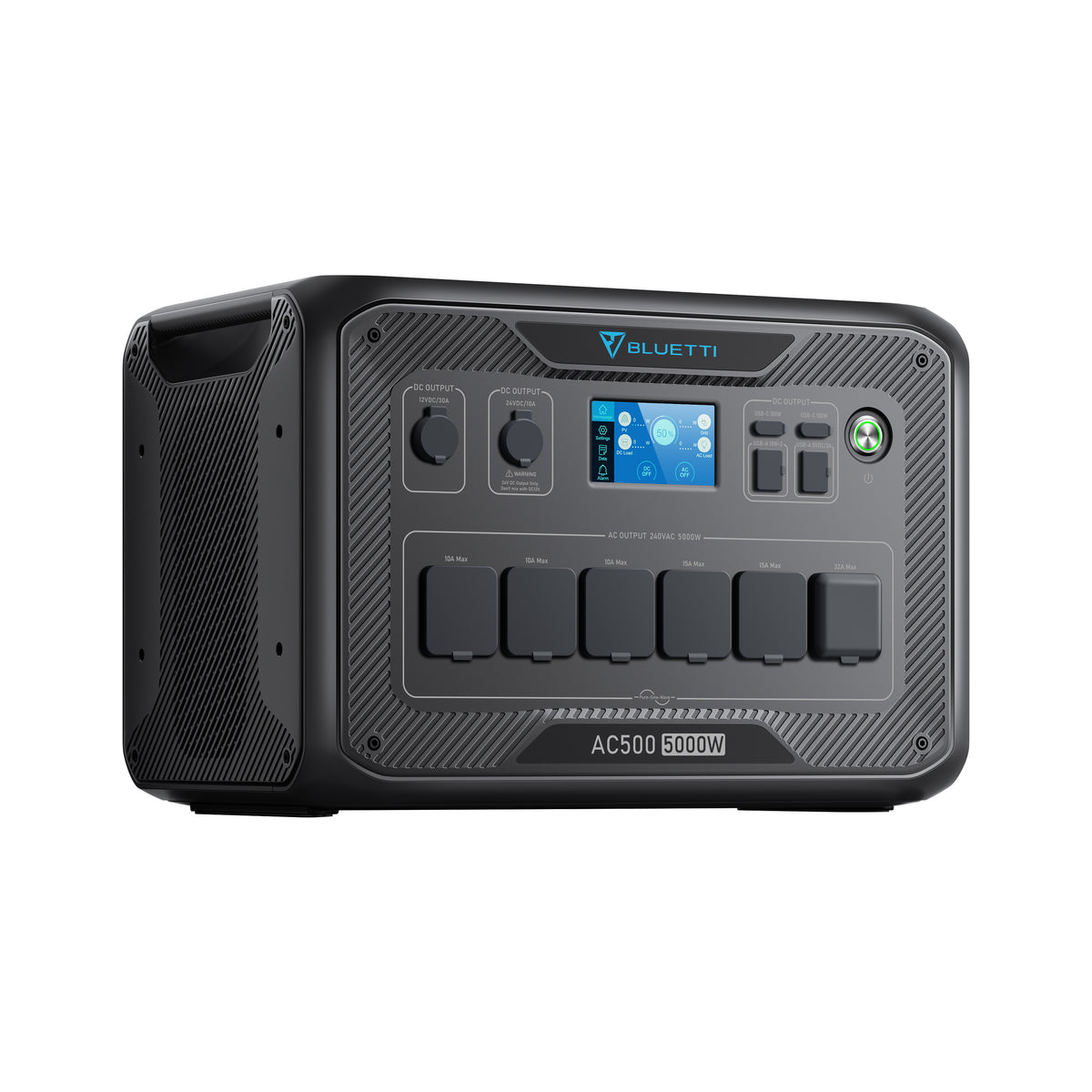

5000W Pure Sine Wave Inverter

This inverter delivers quality pure sine wave output and takes up to 10kW surge, ensuring anything you plug in will be running to its full functionality and capacity.

Charge in Any Way You Like

No matter where you are, you can charge your AC500 system at any time. With the wall outlet and solar panels plugged in, the AC500 system supports up to 8,000W impressive input rate (At least 2*B300S packs required). Get the system recharged before you pack up for the camping, and your power will be ready when you are.

Power Option for Personalization

AC500 is 100% modular and can accept up to 6×B300S (3,072Wh each) expansion battery packs, adding up to an overall capacity of 18,432Wh – Power your whole family's basic needs for DAYS
either in daily use or power outages!

Product Comparision

Accessible Loads
AC500+B300S
A$4,899.00
Buy Now
AC300+B300

Buy Now

Capacity

AC Output

AC Input

Solar Input

Battery Type

Life Cycles

Mobile APP

Dimensions

Weight
Air Conditioner(8100BTU)

Hair Dryer(1,300W)

Microwave(600W)

Electric Hammer(800W)

Heater(1,800W)

Coffee Maker(800W)

Dishwasher(1,300W)

Electric Grill(1,560W)
3072Wh(51.2V,60A)

3×240V/10A,2×240V/15A,1×240V/32A,5000W In Total

4500W Max.

3000W Max.,12-150VDC,15A

LiFePO₄

3500+ Cycles

BLUETTI App (WiFi/Bluetooth)

20.5*12.8*14.1in / 52*32*35.80cm(AC500)

66.2 lbs(30 kg)(AC500)
3072Wh(51.2V,60A)

6×220V-240V/13A,3000W In Total

3000W Max.

2400W Max.,12-150VDC,12A

LiFePO₄

3000+ Cycles

BLUETTI App (WiFi/Bluetooth)

20.5*12.5*14.1in / 52*32*35.80cm(AC300)

47.6 lbs(21.6 kg)(AC300)
1.6 Hours

1.3 Hours

2.7 Hours

2 Hours

0.9 Hour

24 Cups

1.3 Hours

1 Hour
1.6 Hours

1.2 Hours

2.7 Hours

2 Hours

0.9 Hour

24 Cups

1.2 Hours

1 Hour

Product Comparision

Accessible Loads

AC500+B300S
A$4,899.00

Buy Now

Capacity

3072Wh(51.2V,60A)

AC Output

3×240V/10A,2×240V/15A,1×240V/32A,5000W In Total

AC Input

4500W Max.

Solar Input

3000W Max.,12-150VDC,15A

Battery Type

LiFePO₄

Life Cycles

3500+ Cycles

Mobile APP

BLUETTI App (WiFi/Bluetooth)

Dimensions

20.5*12.8*14.1in / 52*32*35.80cm(AC500)

Weight

66.2 lbs(30 kg)(AC500)

Air Conditioner(8100BTU)

1.6 Hours

Hair Dryer(1,300W)

1.3 Hours

Microwave(600W)

2.7 Hours

Electric Hammer(800W)

2 Hours

Heater(1,800W)

0.9 Hour

Coffee Maker(800W)

24 Cups

Dishwasher(1,300W)

1.3 Hours

Electric Grill(1,560W)

1 Hour
AC300+B300

Buy Now

3072Wh(51.2V,60A)

6×220V-240V/13A,3000W In Total

3000W Max.

2400W Max.,12-150VDC,12A

LiFePO₄

3000+ Cycles

BLUETTI App (WiFi/Bluetooth)

20.5*12.5*14.1in / 52*32*35.80cm(AC300)

47.6 lbs(21.6 kg)(AC300)

1.6 Hours

1.2 Hours

2.7 Hours

2 Hours

0.9 Hour

24 Cups

1.2 Hours

1 Hour

Never Run Out of Power

Suitable for various occasions

Specifications

User Manual

BLUETTI AC500 + B300S | Solar Generator Kits User Manual

Download Now >

Bluetti ac500 + b300s

Very pleased with purchase, it does exactly what’s it’s intended to do, will look to add battery capacity in the future. Its compact for easy transportation and setup. The only issue I have with the unit is the bulkiness of the cable that joins the two units, maybe in future models there could be a direct connection between the units to minimise overall dimensions. Thanks frank

Everything was couriered to my address within a week, which is great. Thanks for the extra gifts as wel

Great solar generator

This is my second solar generator from Bluetti, best around

Ac500 & B300s

Very Quick delivery, the units came with excellent package. The unit had a little mark on it. And I contact BLUETTI support, very quick response, Thanks Bon. I bought this before a couple day the special come with free trolley. but BLUETTI still offer me one for free. It does could help a lot for my heavy units. Thanks BLUETTI. I’m very happy with the first test, can run my kettle 2kw, microwave 1.8kw and a rice cooker 1kw at the same time. Thank you BLUETTI Love it.

BLUETTI AC500 +B300S Solar Kits

So far so good, a few kinks that need to be worked out, but overall a good system

1 2 3

FAQS

Q: How fast can I charge the AC500 with a standard AC charging cable?

A:

With this cable, you can charge the AC500 at a maximum input of 2400W.
Q1: How can I get a 5000W AC input for the AC500?

A:

Connect 2 or more B300S units to the AC500, integrate them to the main panel of your home and you're ready to charge the AC500 at the maximum 5000W AC input. Note: The maximum AC input of AC500+B300S is 4500W.
Q2: How much power can I draw from the 32A AC outlet?

A:

5000W Max. This outlet is for power-hungry appliances that require higher currents. Note: A M28 Bayonet 3-Pin Male Connector is required. Learn more. The CEE 32A outlet delivers a maximum current of 32A.
Q3: What is the output power of AC500?

A:

4,500W Max. with 1*B300S
5,000W Max. with 2*B300S or more
3,000W Max. with 1*B300
5,000W Max. with 2*B300 or more.
Q4: How many B300 packs can be connected to AC500？

A:

4
Q5: Can I use AC500 alone?

A:

No, it's 100% modular and needs to team with B300S/B300 to get its job done.
Q6: What is the max charging power of AC500?

A:

3,000W Max. with 1*B300.
5,000W Max. with 2*B300 or more.
4,500W Max. with 1*B300S (Solar + AC).
8,000W Max. with 2*B300S or more (Solar + AC).
Q7: Can I use other brands' batteries?

A: No, AC500 is compatible with B300S or B300 ONLY.
Q8: What is the power consumption of AC500 when it's off/on?

A: 1. 11W when AC500 is on, AC and DC are off; 2. 30W when AC and DC are on.
Q9: Do I need an extra cable to connect B300 and AC500?

A：Yes, P150D to P090D is required, you may order it separately in BLUETTI Store.
Q10: What is the difference between B300S and B300?

A: 1) Current capacity: 130A for B300S while 75A for B300.
2) ONLY B300S features the automatic heating function.
3) Solar input: 500W for B300S while 200W for B300.
Q11: How does the heating function work?

A: When the temperature is below 0℃, the battery will be automatically heated once AC or PV charging is activated (input power＞400W).
Q12: How to connect AC500 to the main panel?

A: Low Voltage Area: Match the transfer switch and smart home panel to the main panel.
High Voltage Area: Match the transfer switch to the main panel.
Q13: What is the switching time of the UPS?

A: 20ms.
Q14: Can I use third party solar panels to charge AC500?

A: Yes, the solar panels must meet the following conditions:
1) Total voltage: 12 - 150V
2) Total power: 3000W max.
3) With MC4 connectors.
Q15: Can I use rooftop solar panel to charge AC500?

A: Yes, but please note that your solar roof must meet:
1. No micro-inverter
2. Open circuit voltage: 12-150V
3. With MC4 connectors
Note: When OCV exceeds 150V, you may use BLUETTI D300S* to step down the voltage to achieve solar charging.* D300S Sold separately.
Q16: Does AC500 support charging and discharging at the same time?

A: Yes.
Q17 : How long will AC500 run my device?

A: Running time = battery capacity x DoD x η ÷ device rated power
DoD: Depth of Discharge, η: local inverter efficiency. For AC500, both DoD and η are 90%.
If you run a 1,000W microwave oven with a AC500 + B300S combo, the running time will be 3,072Wh × 90% × 90% ÷ 1,000W ≈ 2.5 hours
Note:
1) This formula doesn't apply to inductive loads with compressors, such as refrigerators, air conditioners, etc.
2) The above data is for reference ONLY.
Q18 : Is AC500 waterproof?

No, please keep it in a dry place.
Q19 : Can I use the fusion box in high voltage areas?

No.
Q20: How many B300S packs can be connected to AC500？

A:

6
Q21: Can B300S and B300 be mixed?

A:

Yes. 4 packs in total.
Q22: Why does a warning come up when using a diesel heating pump with the cigarette lighter port?

A:

The pump may require more initial power to start. Use a compatible adapter to start and run the pump with our AC outlets.
