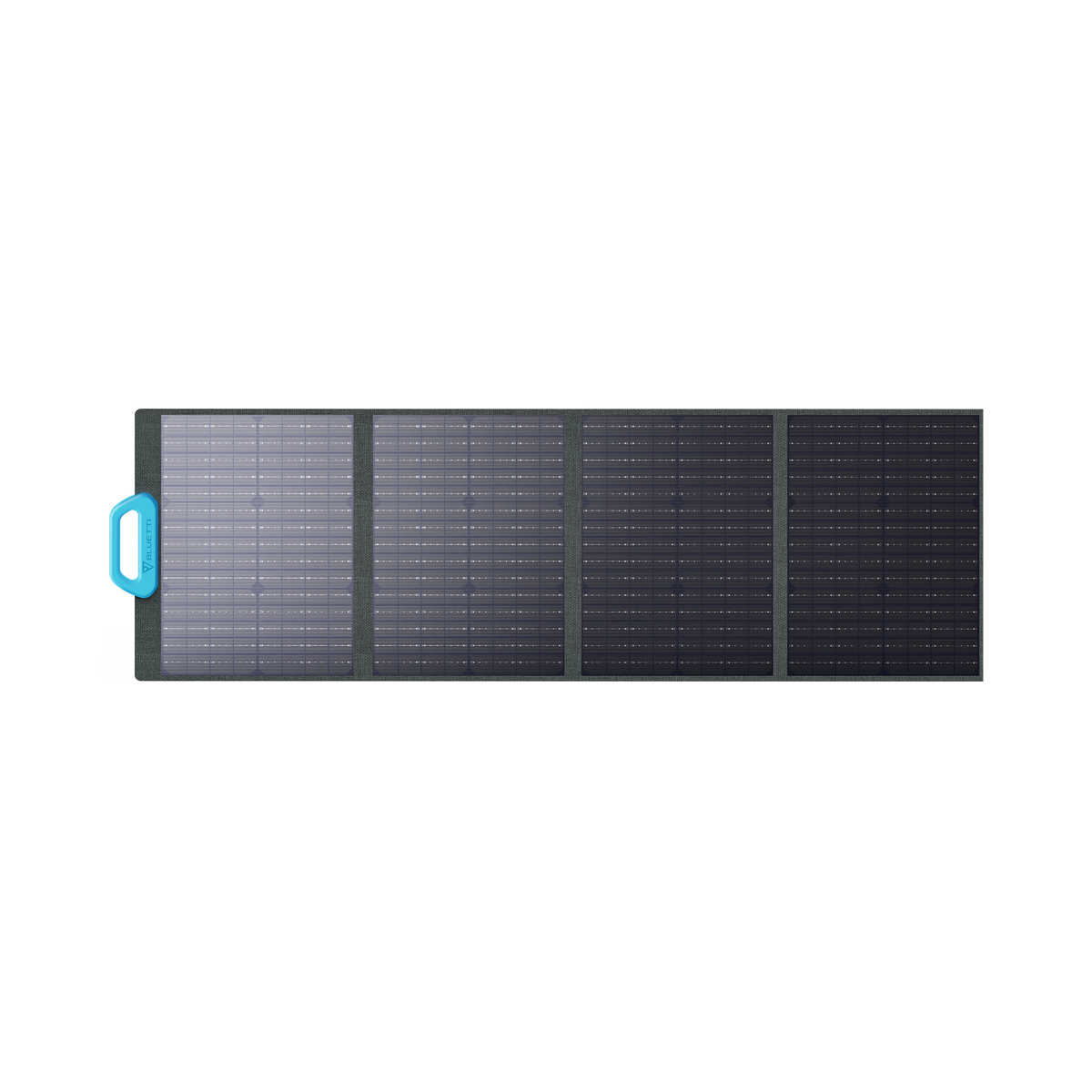

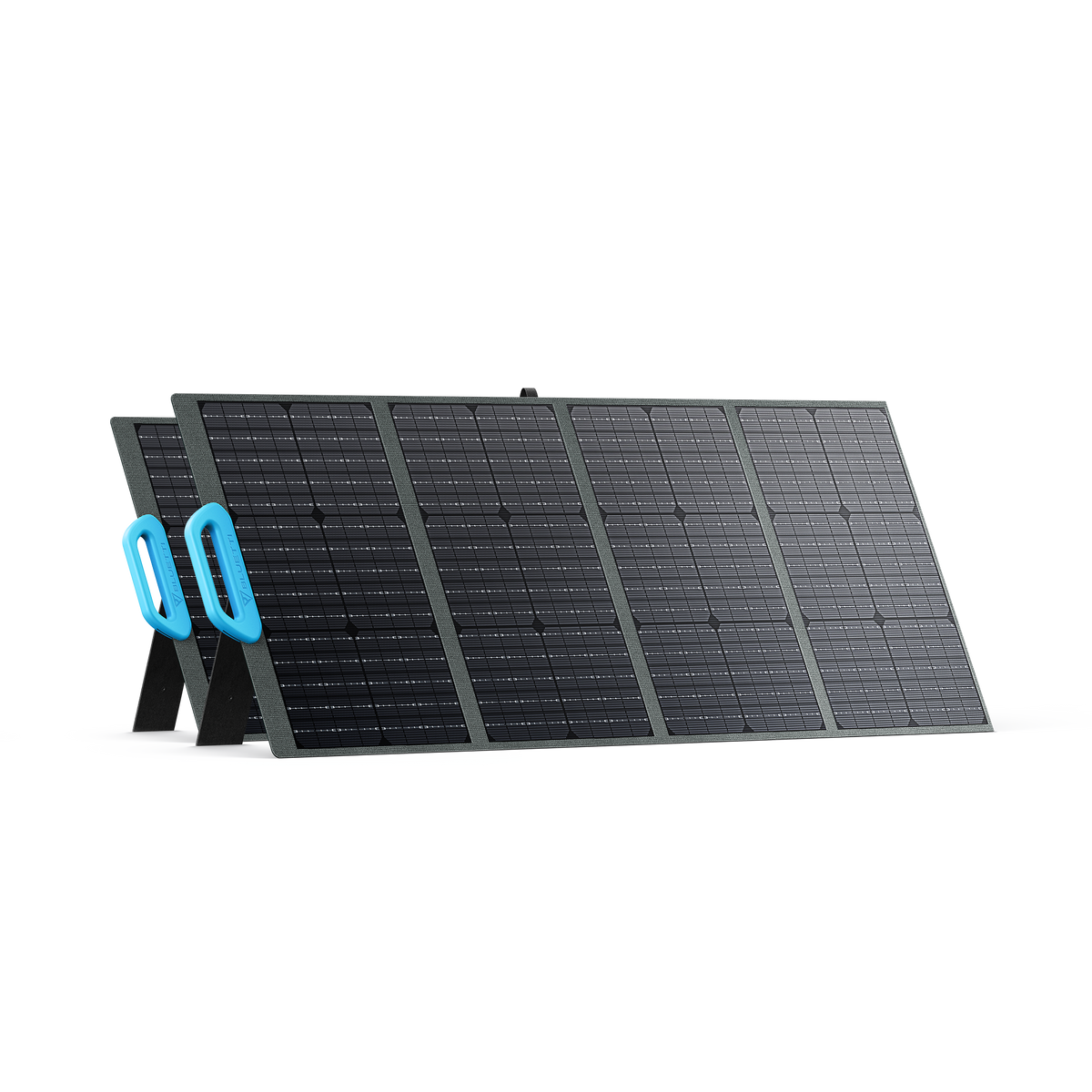

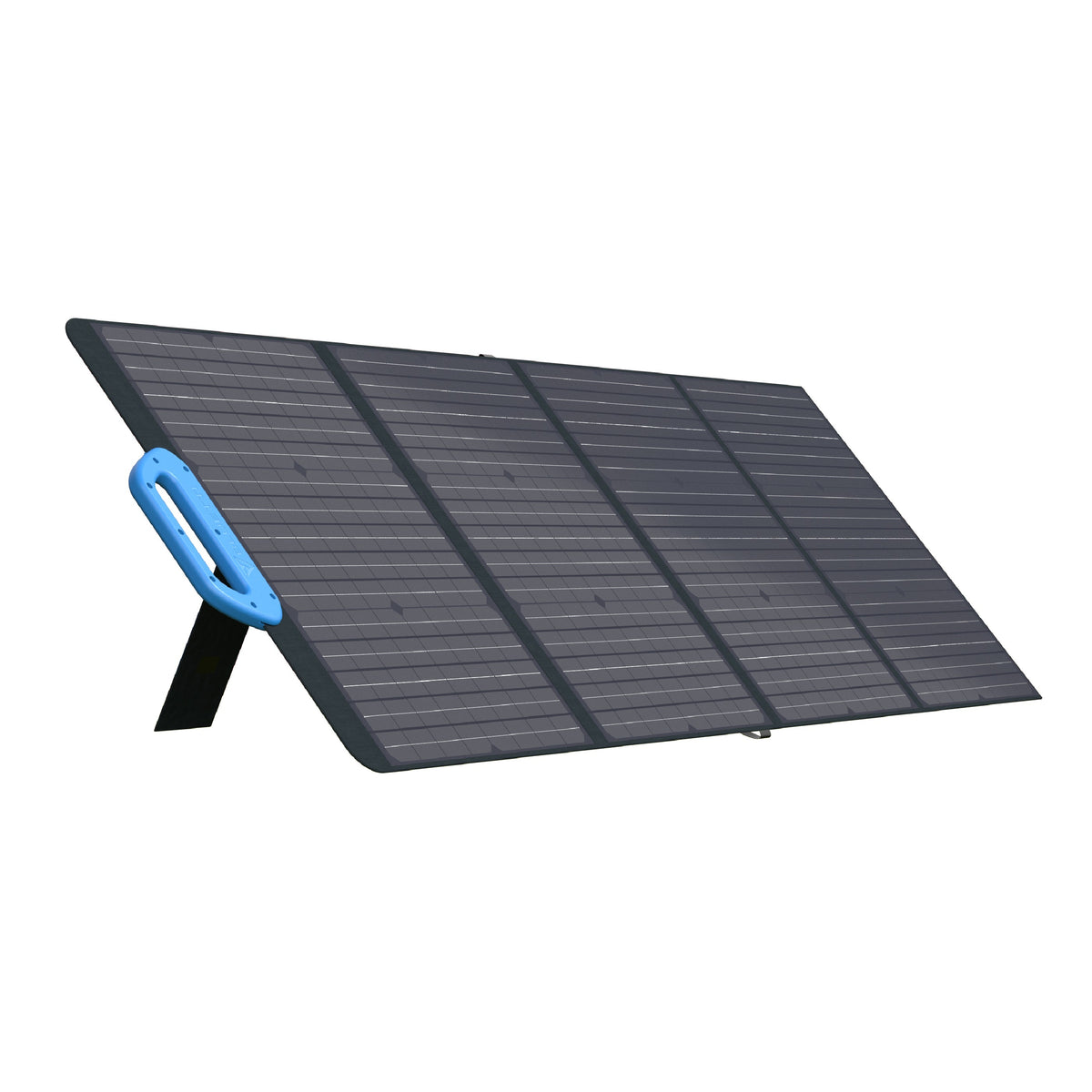

BLUETTI PV120 Solar Panels | 120W
- Monocrystalline Solar Cells With Up to 23.4% Efficiency

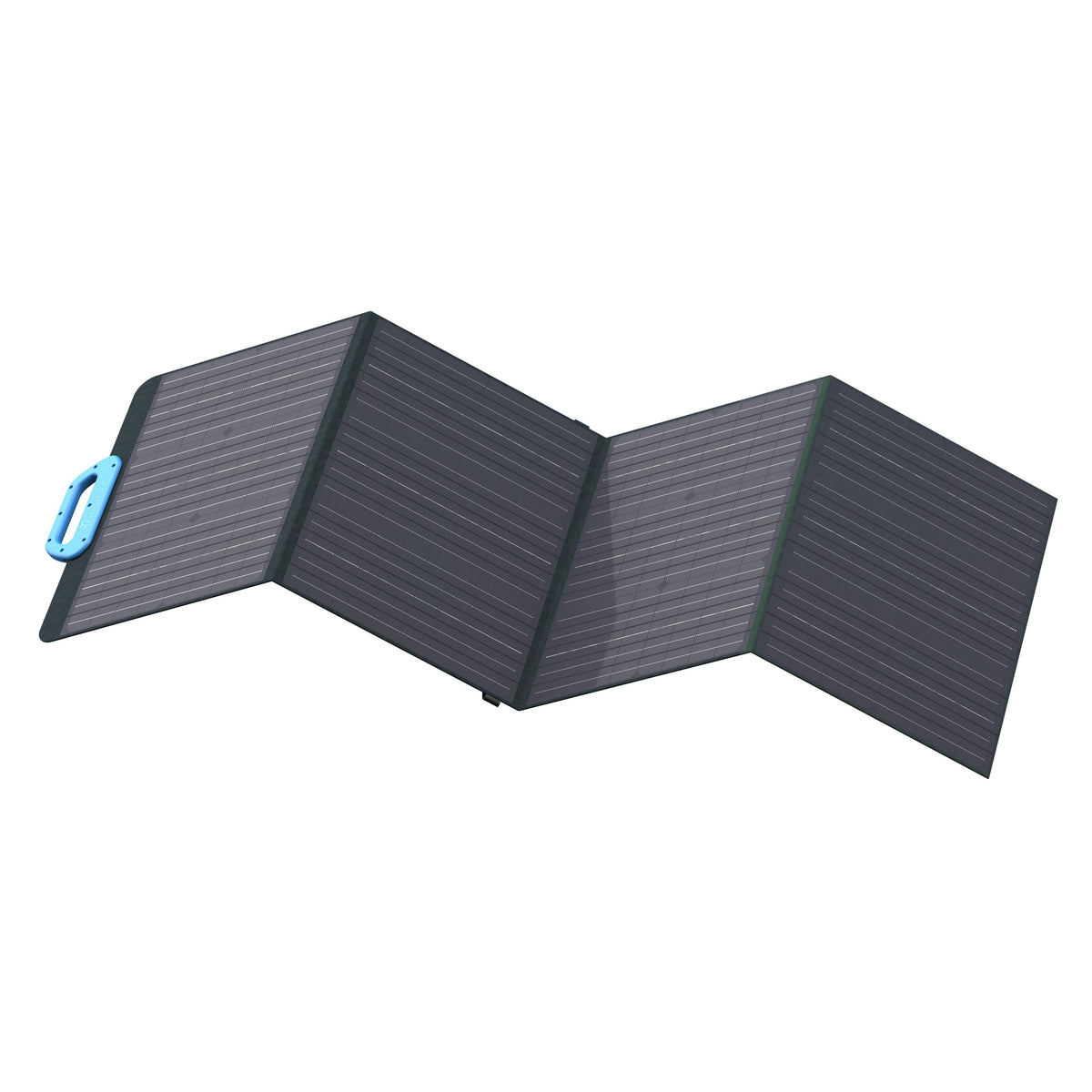

- Foldable & Portable
- Compatible With Most Solar Generators with MC4 Connectors
- 24-month Warranty
2-year Hassle Free
Solar Charge Anywhere
Other Top Rated Products
BLUETTI PV120 Solar Panels | 120W MANUALDownload Now
Q1: What can this PV120 charge?A:
A: The PV120 can work with most power stations on the market,
1pcs BLUETTI 120W solar panel can quickly charge the BLUETTI EB55 within 5.7-6.2 hrs.
1pcs BLUETTI 120W solar panel can quickly charge the BLUETTI EB70 within 7.5-8 hrs.
2pcs BLUETTI 120W solar panels can quickly charge the BLUETTI EB150 within 7.8-8.3 hrs by connecting them in series.
3pcs BLUETTI 120W solar panels can quickly charge the BLUETTI AC200P within 7-7.5 hrs by connecting them in series.
3pcs BLUETTI 120W solar panels can quickly charge the BLUETTI AC200Max within 7.2-7.7 hrs by connecting them in series.
6pcs BLUETTI 120W solar panels can quickly charge the BLUETTI AC300+*2B300 within 10.5-11 hrs by connecting them in parallel.
Besides the BLUETTI power station (AC200P, EB150, EB55, EB 70, AC200MAX, AC300), it can also be used with Baldr/Jackery/Goal Zero/PaxcessRockpals, AIMTOM, JACKERY If you have your own adapter (need to buy adapter yourself).
Friendly Note: which means that if the total power of your devices exceeds 700W.
Q2: Is It Waterproof?A:
Yes, IP65 is rated for junction box, but do not expose the solar panels to rain or snow.
Q3: What will affect the solar conversation rate?A:
A. The sunlight intensity.
B. Ambient temperature.
C. The angle you place the solar panel to sunlight.
D. The length of the solar charging cable(for third-party cables).
Q4:How can I know how many solar panels can be used on a power station?A:
A:Check the Max. Open Circuit voltage and power of solar input of the power station.
B:And the Open Circuit Voltage and Max. Power of the solar panels.
C:Make sure the total Max. voltage and power of the solar panels(in series/parallel) does not exceed the value that the power station can absorb.
D:Make sure the total max. value does not exceed the numbers in the specification when you connect several pieces in series or paralell.
Q5:What are the compatible Bluetti Models?A:
EB55 (537Wh/700W power station)
EB70 (716Wh/1000W power station)
EB150 (1500Wh/1000W power station)
AC200P (2000Wh/2000W Power Station)
AC200Max (2048Wh/2200W Power Station)
AC300 (3072-12288Wh/3000W Power Station)
B230(2048Wh/500W Extra Battery Pack)
B300(3072Wh/500W Extra Battery Pack)
☼To verify the compatibility with our future new product, please read the menu comes with the product, or contact us directly. ☼To verify the compatibility with devices that are not sold by our store, please contact the related seller.
Q6:What is the warranty?A:
24 months warranty and lifetime
DO NOT connect PV120 with any other solar panel model but PV120, or will be damaged.
