LiFePO4 vs. Traditional Lithium-ion: Which Is the Better Battery?

LifePO4 Battery
The Lithium Iron Phosphate battery, abbreviated as LifePO4 or LFP, is a special type of rechargeable lithium-ion (Li-ion) battery. The LifePO4 battery is known for its strong chemical composition and high safety features. The batteries perform optimally under extreme climatic conditions.

With improved safety features, long life span, eco-friendliness and wider optimal temperature range, the LifePO4 batteries have become the go-to option for many people seeking the right batteries. It is the best battery option for solar energy systems, electric motorcycles, motor homes, bass boats among others.

In this article, you will learn various aspects of LifePO4 batteries and why they are outpacing other types of batteries.

Comparison: LifePO4 Vs. Lithium-ion Batteries

Both the Lithium Iron Phosphate batteries and the Lithium-ion batteries belong to the same class of Lithium batteries. That is why both have some similarities in their construction and functionalities. But how do they compare and differ, and why is LifePO4 the best option by far?

LifePO4 Battery

The LifePO4 battery has a unique chemical composition, giving it an advantage compared to other lithium technologies. The chemical composition of LFPs comprises a lithium iron phosphate (LiFePO4) cathode and the anode is typically carbon, while the electrolyte is lithium salt in an organic solvent.

The chemistry composition of lifepo4 has higher safety features compared to Li-on batteries. Metals such as phosphorus, iron, and oxygen atoms in the cathode create strong covalent bonds. Therefore, the battery is stable with lesser risks of overheating and thermal runaway.

The use of cobalt and nickel in other batteries is controversial because they are unethically sourced. LifePO4 batteries do not use these metals.

Lithium-ion Battery

The Li-On battery is made of different chemical compositions, such as lithium manganese oxide (LMO), lithium iron phosphate (LiFePO4), and lithium cobalt oxide (LiCoO2). Like the LifePO4, the Li-on batteries have three chemical compositions, the anode, the cathode and the electrolyte. The difference is the chemical composition of the cathode, which contains lithium metal oxides.

The charging and discharging process is similar for both types of batteries. The lithium ions move from the cathode to the anode while the electrons migrate in the opposite direction.

lithium-ion battery

LiFePO4 Vs. Lithium ion:  Which is a Better Choice?

You should consider investing in a battery bank that you can regularly use off-grid. LifePO4 is the better option for you. Also, although the Li-ion batteries are considered safe, the LifePO4 has added safety features which makes it the best option.

In addition, it has cycles that are almost 10 times more than Li-ion batteries. You will save money in the long run and contribute to protecting the environment. So, in all aspects, the LifePO4 batteries are the right choice for your solar power system.

Advantages of LifePO4 Battery

1. Fast Charging and Low Discharging Rate

lifepo4

The LifePO4 battery is almost similar to lithium-ion batteries when it comes to charging. It charges faster compared to other types of batteries. It takes approximately 1 to 2 hours to charge on AC and about 3 to 6 hours with solar power. The real charging time can differ depending on several factors such as the current, the battery capacity and the charging method.

When charging the LifePO4 battery from the solar cells, the charge controller is used to regulate the voltage and current feeding it into the battery management system (BMS). The BMS provides over-voltage protection, short circuit protection, under-voltage protection as well as load balancing.

Additionally, the LifePO4 batteries have a significantly low discharge rate compared to Li-ion and lead-acid batteries. The discharge refers to the situation where the battery loses its charge after sitting idle unused for a long time.

The LifePO4 battery can discharge at a rate of 2–3% per month, while Lithium Cobalt Oxide (LiCoO2) and Nickel-Cadmium (NiCad) batteries discharge at a rate of 20% per month.

The low discharge rate of the LifePO4 batteries makes them ideal and efficient for storing backup power for homes. It can stay unused for months and still come in handy during blackout emergencies.

It’s worth noting that all battery types lose a certain percentage of their charge overtime if left unused. Proper handling and maintenance of your LifePO4 battery will ensure its longevity and optimal performance, especially storage of power.

2.A Wide Operating Temperature

LifePO4 battery has a temperature ranging from -4°F and 140°F or (-20°C to 60°C). The wide temperature range allows lithium iron phosphate batteries to perform optimally even in extreme cold or heat climatic conditions.

It is recommended to use the LifePO4 batteries at the optimal operating temperature to ensure high efficiency and long life of the battery. Also, avoid operating the battery outside the temperature range, as it impacts its lifespan and performance. Extreme temperatures reduce the efficiency and the capacity of the battery. On the other hand, extremely high temperatures may cause faster aging, increase the risk of thermal runaway, and reduce its capacity.

3. High Safety Features

Compared to other types of batteries, such as Li-ion, LifePO4 batteries have higher safety technological features. The LifePO4 batteries have the P-O bond on the lithium iron phosphate crystal, which is stable and hard to decompose. Additionally, it does not decompose, collapse, or overheat like lithium cobaltite. Also, in high temperatures, it does not overcharge or form a strong oxidizing substance.

Also, the LifePO4 battery does not have the issues of emitting toxic fumes and off-gassing like in lead-acid and Lithium-ion batteries. Lead acid batteries emit toxic fumes like hydrogen sulfide. Li-ion batteries are prone to experiencing overheating, thermal runaway, and combustion.

Another safety feature of the LifePO4 battery is its non-flammable electrolyte, which is part of the battery composition, thus avoiding danger in batteries. Therefore, you can operate the LifePO4 battery inside your home, in the garage, or a shed.

With enhanced safety features, you can use the LifePO4 batteries in your tiny motorhome.

4. Long Life Cycle

The LifePO4 batteries have a long life compared to other types of batteries. The lead-acid battery has a life cycle ranging from 300 to 500 cycles in which the capacity starts declining up to 70–80%. The LFP batteries have a longer lifespan of up to 2000 to 3,000 cycles, which is up to 10 years. Most of them drop up to 80% of their original capacity.

5. Environmental Friendly

The LifePO4 batteries have a longer lifespan compared to the lead-acid and Li-ion batteries. LifePO4 batteries are replaced less often, meaning less batteries end up in landfills.

Also, LifePO4 batteries do not contain harmful metals and chemicals such as lead and cadmium. The internal parts of the battery are recyclable, which minimizes negative impact on the environment.

Additionally, the LifePO4 batteries do not use cobalt unlike other types of batteries. Cobalt is unethically mined in Congo involving child labor among other inhumane conditions.

The LifePO4 batteries are highly efficient, which is a contributing factor to their eco-friendliness. They need minimal charge and discharge energy, minimizing the negative impact on the environment.

Additionally, LFP batteries are compatible with clean and renewable solar power, the best and safest option for the environment and the users.

Is LifePO4 Battery Suitable for Inverters?

The batteries play a major role in determining the inverters lifespan and performance. The LifePO4 batteries are stable, reliable, and with minimal maintenance, which helps improve the efficiency of the inverter. The LifePO4 batteries have a longer lifespan, 10x more than the lead-acid batteries thus keeping your inverter in best working condition.

Additionally, LifePO4 batteries have high safety features. The battery is incapable of combustion even when mishandled. They have higher stability during short circuits and in cases of overcharging. The LifePO4 batteries have a higher capacity and are capable of handling temperature variations effectively. The best battery for your inverter, for improved efficiency and cost-effectiveness, is the LifePO4 battery.

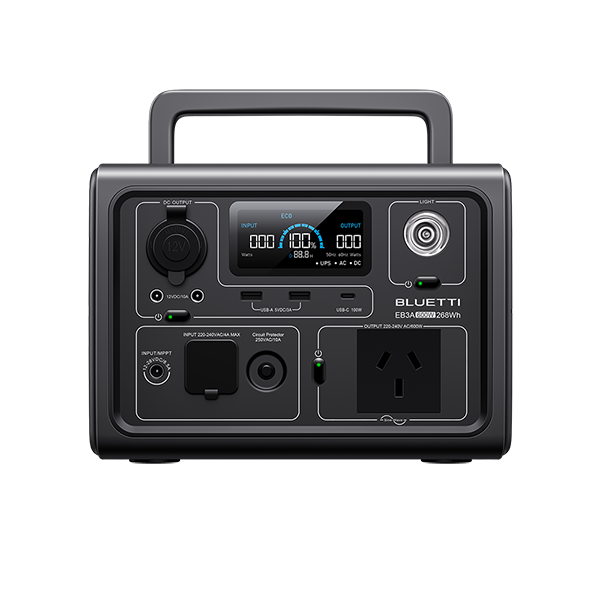

BLUETTI EB3A

Portable Power Station
Whether it be small blender, mini rice cooker or small refrigerator, EB3A gets you all covered

Check Discount

Applications of LiFePO4 Battery

There are several uses for the LiFePO4 battery. The following are some of the LiFePO4 applications.

1.Solar system Setups

The LifePO4 batteries come in different sizes. The smaller lightweight sizes are suitable for portable solar setups for RVs, camping and backpacking. They are the best for solar power storage due to their long life span, low level of maintenance, fast charge, slow discharge, high power density and the ability to withstand high and low temperatures.

Manufacturers such as BLUETTI have incorporated LiFePO4 batteries into all their products, like backup power systems and solar generators. This implementation guarantees an extended lifespan, increased energy density, reduced self-discharge, and enhanced safety.

2.Fishing boats and Kayaks

Another common application for LiFePO4 batteries is in boats and kayaks. The batteries have a shorter charging time and longer runtime, allowing you to spend more time in the water without worrying about power. In addition, the lightweight nature of the battery makes it easier, safe and more convenient to use on boats.

3.Commercial Use

The LiFePO4 batteries are the toughest and safest lithium batteries on the market. This aspect makes them great for industrial applications.

Final Thoughts

As mentioned above, the LiFePO4 batteries are a type of Lithium batteries with improved safety features, durability, optimal temperature range, and efficiency, making it the best option for off-grid power solutions.

The LiFePO4 batteries are great for reducing the negative environmental impact and for anyone looking to save on the long-term costs of energy storage.

Explore BLUETTI's collection of solar generators and power stations that use LiFePO4 batteries. These products are perfect for a dependable, hassle-free, and environmentally-friendly energy storage solution. Start shopping at BLUETTI today!
